belt conveyor / construction / drum motor / aluminum

{{requestButtons}}

Characteristics

  • Technology:

    belt

  • Sector:

    construction

  • Other characteristics:

    drum motor, aluminum, inclined

Description

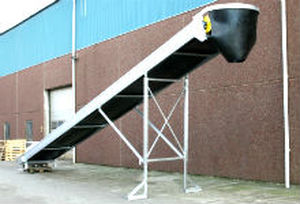

Aluminium belt conveyors from fibo intercon are supplied in widths of 0.8 M and 1 M - and lengths of 8 - 14 M.

fibo intercon belt conveyors are especially suited to carry gravel, sand, lightweight aggregate and concrete mixes.

The conveyor is built on two strong aluminium profiles and all other parts are galvanized.

A plough scraper is fitted onto the conveyor belts, which ensures that the internal sides of the belts are kept clean. A band scraper, that scrapes material off the top side of the belts at the discharge point, is also fitted onto the belts.

All belt conveyors are delivered complete with drum motor with integrated gearbox, inlet and outlet funnel. The belt conveyors are also delivered with lifting eyes for easy transportation.

We can deliver belt conveyors with wheels, height-adjustable legs, frame with draw hook and cover.
