CNC drilling line TIPO D50-F

horizontalfor flat profilesfor angle profiles

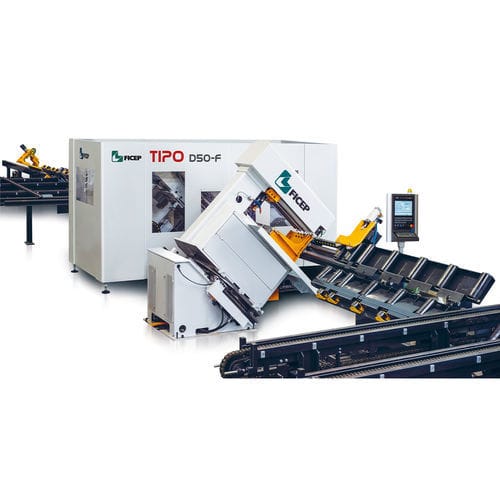

Automatic CNC high speed drilling & sawing line for flats, angles, channels and tubes The addition of the innovative TIPO D50-F product line extends our technological solutions to address the fabrication of miscellaneous shapes such as angles, flats, structural tubes and channels. This fabrication line features the integration of drilling, scribing, marking and miter cutting of diverse miscellaneous shapes. Drilling unit A high performance Direct Drive spindle driven by a 27 kW (37 HP) motor, equipped with a 200 mm (7-7/8”) sub-axis stroke to produce typical hole patterns without the need to unclamp, reposition and re-clamp the material for each linear move. Automatic tool-changer The drill spindle includes an 8-position automatic tool changer to address diverse applications such as slotting, milling, tapping and more. Mitering disc saw The Tipo D50-F includes a miter-cutting circular saw with carbide inserts for maximum productivity. The saw can position automatically for miter cuts of up to 60° in either direction. Second drilling unit An additional Direct Drive spindle, having the same characteristics of the first one, can be furnished as an option. It is also equipped with 200 mm (7-7/8”) sub-axis stroke and 8-position automatic tool changer Processing of angles Angles with full miter cuts on both ends can be processed to generate typical framing structures. The versatility of processing flats up to 500 mm (20”) by 25 mm (1”) is exhibited with its ability to not only cut the part to length but also clip the corners as required.
