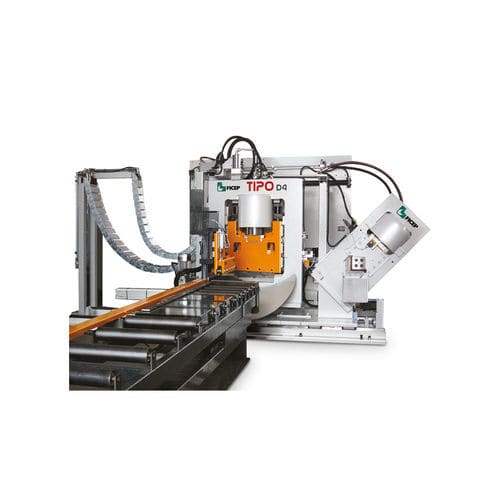

CNC punching line TIPO D4

hydraulicfor flat profilesshearing

Automatic CNC punching, drilling, shearing & thermal cutting line for flats Structural steel fabrication requires a diverse number of detail items designed for connections, stiffeners, end plates, cap plates and more. These construction components vary greatly in thickness, width and profile. Thanks to its versatility, the Tipo D4 is the ideal machine to satisfy all the manufacturing needs. Punching unit Tipo D4 base system has punching capability with 4 or 8 punch stations each with 1100 kN (124 US tons) force. Shearing unit A single cut shear with special hold-down systems for the utmost in shearing precision. All shearing blades are manufactured internally to guarantee the best quality and longest tool life. Marking unit The marking of pieces is generated with a CNC controlled rotating disc-marking unit with alphanumeric characters. DRILLINK UNIT The drilling units are equipped with an ISO40 spindle; having a CNC controlled rack-and-pinion servo/motor feeding system. AUTOMATIC TOOL-CHANGER The drill unit is equipped with a 4 position automatic tool-changing system for quick tool replacement. ANGLE PROCESSING GROUP Optional equipment is available for the processing of angles in addition to flats. This option includes a second shear and an additional punching station. STOCK LENGTH DETECTION Thanks to a laser device positioned on the infeed conveyor it is possible to exactly measure the material stock length prior to processing. Advantages Up to 8 different punching operations are possible. Optional high performance drill spindle with automatic tool changer. Programmable part marking. Programmable miter cutting and clipping of flats
