Forging presses

Force: 300 tf - 1,500 tf
Opening: 1,200, 1,000, 1,100 mm
Stroke: 450, 500 mm

Frame structure: welded frame structure made of high quality steel plate and annealing process, confirm the elastic deformation in maximum pressure through finite element analysis, guiding of moving bolster by eight-face linear guide ...

Force: 10,000, 4,000, 6,300, 1,600, 2,500 kN
Opening: 300, 550, 650, 400, 450 mm

SINGLE-POINT, LINK MOTION, COLD FORGING PRESS, K1-E OVERVIEW K1-E Series Press - a high performance cold forging press, enables production of the high-quality ...

Force: 500 tf - 2,500 tf
Stroke: 250 mm - 900 mm
Table width: 1,000 mm - 2,500 mm

FAGOR ARRASATE designs and manufactures cold forging mechanical presses, for both cold extrusion and calibrating operations. Depending on the case the cold forging mechanical press ...

Force: 16,000 kN

... deep-drawing and ironing operations in one forging procedure no limits on part length due to unlimited working strokes of hydraulic press systems high output performance, particularly with horizontal ...

Force: 4,100 kN - 102,400 kN

... during the forging process. Thanks to the utilization of a second brushless motor, with a very high rotation speed, the energy that would normally be lost to brake the press, is regenerated and stored, ...

Force: 3,150 kN
Stroke: 250 mm

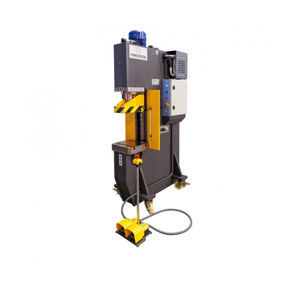

... products. C-frame mechanical presses are specifically used for blanking and for the manual single-stroke or automatic cycle stamping of small parts. Quality as Standard The C-frame mechanical presses are produced ...

... mainly used for metal stamping, drawing, punching, sizing, cold extrusion, cold forging and non-metal forming. Characteristic： -The new generation of servo hydraulic press adopts servo motor - pump ...

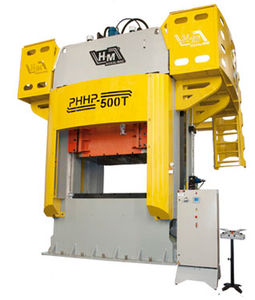

Force: 500 tf

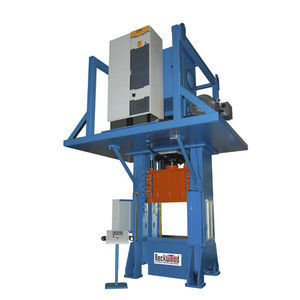

... Gib Guidance system • Variable Frequency Drive • Recipe Handling • Programmable Speed Control • Pre-fill Circuit Forging Press Custom Features: 8-point square gib-guidance system minimizes lateral ...

Force: 1,000, 1,500, 2,000, 3,000, 4,000 kN

Mechanical Forging Presses can work in continuous or discontinuous cycle, depending on the requirements. They can be equipped with various accessories needed for deep vertical and horizontal extrusion piece forging. They ...

Force: 1,200, 700, 600, 450, 300 tf
Opening: 700, 1,000, 900, 800, 600 mm
Table width: 650 mm - 1,000 mm

1, Three-way multi-way forging press equipment adopts servo imported from Italy and Mitsubishi intelligent system control, intelligent operation is very high, strong stability. 2, the body of the solid ...

Force: 1,000, 2,000, 3,150 kN
Opening: 800, 900, 1,200, 1,250 mm

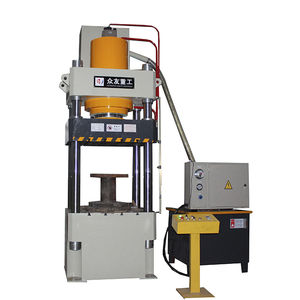

Four Columns Hydraulic Press Machine For Deep Drawing Four Columns Hydraulic Press Machine For Deep Drawing Product Description The four-column hydraulic press is a mechanical device ...

Force: 12,500 kN
Opening: 500 mm - 1,000 mm

... the RPH series are fully-fledged alternatives to conventional presses and forging hammers and are suitable for the production of ring blanks, free-form forgings and drop forgings. We ...

Force: 400 tf
Stroke: 1,200 mm
Working speed: 0 mm/s - 5 mm/s

- PRESS WITH OLEO-DYNAMIC SYNCHRONIZING SYSTEM FOR ALL 4 CYLINDERS FOUR DOUBLE-ACTING HYDRAULIC CYLINDERS 100 TONS EACH + TWO 25 ton. CYLINDERS FOR QUICK UPSTROKE - EQUIPPED WITH ACCUMULATING SYSTEMS FOR QUICK DOWN AND ...

Force: 100 kN - 60,000 kN

Forging the parts above recrystallization temperature, good-stiffness welded frame can bear off-center load, X-shape flat guided way to keep good guide clearance. You can be option of hydraulic eject bars or mechanical ...

Force: 3,000 tf - 20,000 tf

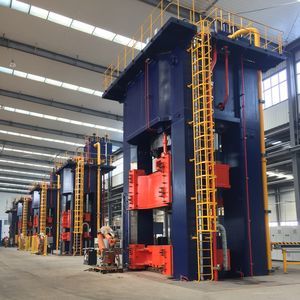

... 10000/15000/20000 TON Closed Die Forging Hydraulic press The machine is perfectly used for closed die metal forging and other hot forging products such as aerospace ...

Force: 1,000 kN
Stroke: 600 mm
Max. pressure: 0 MPa - 25 MPa

... components. The column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing. hydraulic press ...

Force: 2,000 kN - 12,500 kN

JD37 series straight two point press Introduction ·Widely used for trimming.punching.leveling；transfer arms are mounted to compose the automation press line with hot die forging ...

Force: 300, 450, 630 kN

Designed mainly to perform cold pressing operations, like stamping, punching, cutting, cutting, forging, and bending for a number of industries, mechanical presses are particularly widespread in manufacturing. They are ...

Force: 1 kN - 300 kN
Opening: 200 mm - 500 mm

A servo press machine refers to a press that uses aservo motor for drive control. It includes industrial servo presses such as servo presses for metal forging and refractory materials. ...

... requirement, and provide whole solution on production of automobile hubs. Main models： 20MN～200MN hot die forging press Application Hot die forging presses are mainly used for ...
