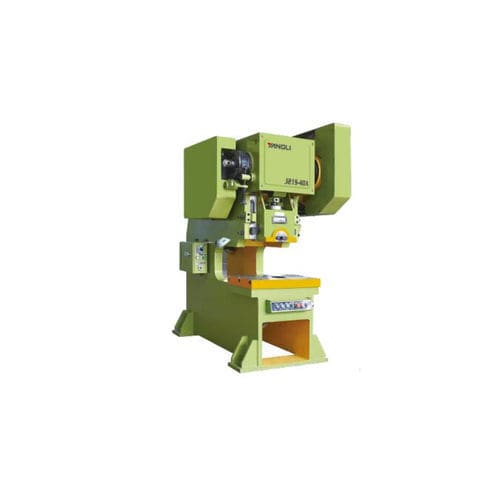

Mechanical press J21SforgingstampingC-frame
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- stamping, forging
- Structure
- C-frame
- Other characteristics
- horizontal, large opening
- Force
Max.: 1,250 kN
Min.: 63 kN
- Opening
Max.: 320 mm
(13 in)Min.: 110 mm
(4 in)- Stroke
Max.: 140 mm
(5.512 in)Min.: 35 mm
(1.378 in)- Hydraulic pump power
Max.: 11 kW
Min.: 0.8 kW
- Overall length
Max.: 2,550 mm
(100 in)Min.: 1,545 mm
(61 in)- Overall width
Max.: 1,610 mm
(63 in)Min.: 620 mm
(24 in)- Overall height
Max.: 2,990 mm
(118 in)Min.: 1,570 mm
(62 in)
Description
Overview
Key features
Technical specifications
Typical applications
- The J21S series general deep-throat press is designed to provide an enlarged working area through a deepened throat, suitable for a range of stamping operations.
- Built for standard industrial production where access to larger dies or workpieces is required.
Key features
- Deepened throat for an enlarged operation area.
- Horizontal crankshaft drive for stable motion.
- Rigid rotated key clutch for reliable power transmission.
- Manual die-height adjustment with scale display for quick set-up.
- Emergency stop fitted on A-type presses to stop the slide within 0°–135°; light curtain available as an optional safety device.
Technical specifications
- Product name: General deep-throat press
- Series: J21S series
- Type: General open-front deep-throat press
- Throat: Deepened throat to enlarge the operation area
- Crankshaft: Horizontal crankshaft
- Clutch: Rigid rotated key clutch
- Die-height adjustment: Manual with scale display
- Emergency stop: Fitted on A-type presses (stop range 0°–135°)
- Optional safety: Light curtain
Typical applications
- Automotive stamping and body components
- Can and container stamping
- Hot-die forging press solutions (forging-related operations)
- Piezoelectric component stamping
- Black-goods appliance manufacturing (small appliances)
- White-goods appliance manufacturing (large household appliances)
