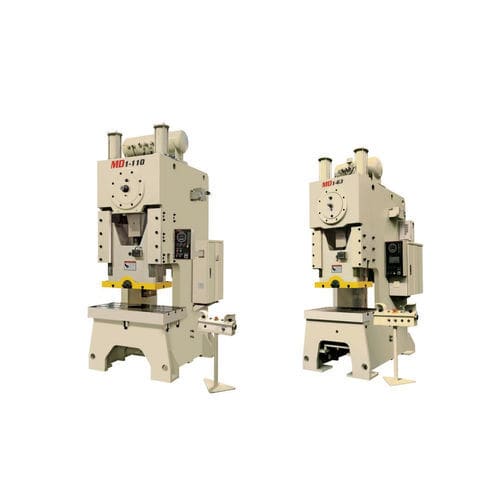

Mechanical press MD1pneumaticelectronicforming
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic, mechanical, electronic
- Function
- forming, stamping
- Applications
- for sheet metal, for aluminum, for automotive parts
- Structure
- ram, frame, with fixed table
- Control
- PLC-controlled, with integrated controller
- Other characteristics
- fixed, with front loading/unloading, with automatic feeder
- Force
Max.: 2,500 kN
Min.: 250 kN
- Opening
Max.: 500 mm
(20 in)Min.: 250 mm
(10 in)- Stroke
Max.: 220 mm
(8.661 in)Min.: 10 mm
(0.394 in)- Hydraulic pump power
Max.: 22 kW
Min.: 4 kW
- Overall length
Max.: 2,730 mm
(107 in)Min.: 1,450 mm
(57 in)- Overall width
Max.: 1,900 mm
(75 in)Min.: 1,050 mm
(41 in)- Overall height
Max.: 4,750 mm
(187 in)Min.: 2,800 mm
(110 in)
Description
Product overview
Main features
Technical data
Specifications
- Product name: MD1 series open-front fixed-bed press.
- Manufacturer: 扬力集团股份有限公司
- Typical applications: automotive stamping, can making, home appliance panels, piezoelectric components and general metal forming.
Main features
- Steel welded high‑intensity frame for structural rigidity.
- Combined dry pneumatic friction clutch for reliable power transmission.
- Cylinder type with adjustable stroke for process flexibility.
- Slide with multi-face guide (MD1-25: six-face; others: eight-face).
- Hydraulic overload protector to safeguard tooling and press.
- Automatic oil-circuit lubrication (MD1-25 uses electrical grease lubrication).
- MD1-45 and larger: electrical die-height adjustment with digital display.
- Lifting balance cylinder for slide stabilization.
- Imported dual solenoid valve for pneumatic control.
- Integrated electrical interface with electrical cam included.
- PLC from an international brand for process control.
- International-brand electrical components: pushbuttons, AC contactor, air circuit breaker.
- Optional equipment: air cushion, automatic feed shaft, light curtain, slide knockout device and other automation options.
Technical data
- Product series: MD1 series open-front fixed-bed press.
- Design highlights: adjustable-stroke cylinder, multi-face slide guides and hydraulic overload protection.
- Control & safety: international-brand PLC, electrical cam, imported dual solenoid valve and branded electrical components.
Specifications
- Frame: Steel welded high-intensity frame.
- Clutch: Combined dry pneumatic friction clutch.
- Stroke: Cylinder type with adjustable stroke.
- Slide guide: Eight-face guide (MD1-25: six-face guide).
- Overload protection: Hydraulic overload protector.
- Lubrication: Automatic oil-circuit lubrication (MD1-25: electrical grease lubrication).
- Die height adjustment: MD1-45 and larger models feature electrical die-height adjustment with digital display.
- Balancing: Lifting balance cylinder included.
- Valves: Imported dual solenoid valve.
- Interface: Integrated electrical interface with electrical cam included.
- Control: PLC from an international brand.
- Electrical components: International-brand pushbuttons, AC contactor and air circuit breaker.
- Optional equipment: Air cushion, automatic feed shaft device, light curtain, slide knockout device and other automatic devices.
