Electromechanical press JM31G punchingframeroller
Add to favorites
Compare this product
Characteristics
- Operation
- electromechanical
- Function
- punching
- Structure
- frame, column type, roller
- Other characteristics
- digital, high-speed
- Force
Max.: 2,000 kN
Min.: 800 kN
- Opening
Max.: 500 mm
(20 in)Min.: 360 mm
(14 in)- Stroke
30 mm, 40 mm
(1.181 in, 1.575 in)- Hydraulic pump power
Max.: 55 kW
Min.: 11 kW
Description

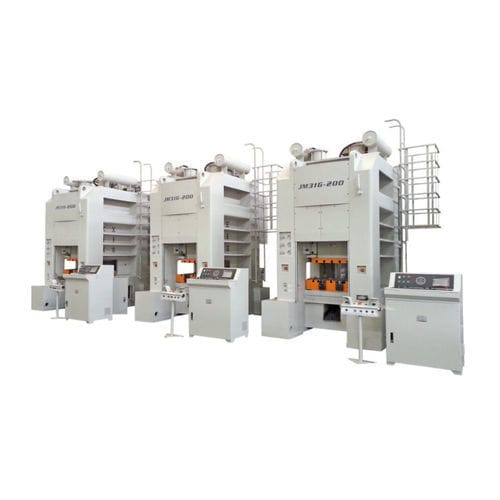

JM31G series gantry type high speed accuracy press
Introduction
·Steed welded gantry type frame with high rigidity.
·Portrait crankshaft with short piwot point distance and high rngidity.
·Crankshaft support:roling bearing with high accuracy.
·Motor with inverter with stable velocity.
·Slide eight-face roller guide with high guide accuracy.
·Mechanical dile height adjustment with digital display and 0.10mm accuracy.
·Hydraulic overload protector 80T/125T link mechanical locking.160T/200T link hydraulic locking.
·Fully forced ol lubrication system.
·Elactrical cam oontrol,integrated interface,easy for operation and with high accuracy.
·Applied for punching of dynamic chain,motor stator and screen mesh,etc.
·lItype with small column clearance and with 1/10000 deflection of bolster.
·ll type is especialy for punching of plate with high intensity,such as dynamic chains.
