Mechanical press ES2stampingframestraight-side
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- stamping
- Structure
- frame, straight-side
- Control
- PLC-controlled
- Other characteristics
- with pneumatic assist
- Force
Min.: 2,500 kN
Max.: 10,000 kN
- Opening
Min.: 600 mm
(24 in)Max.: 1,000 mm
(39 in)- Stroke
400 mm
(15.748 in)- Hydraulic pump power
Min.: 30 kW
Max.: 132 kW
Description
Product name

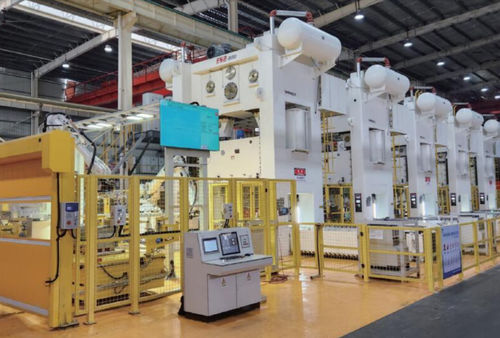

ES2 Series straight closed two-point press with entire welded frame
Introduction
Parameters (images available on product page)
Features / Technical specifications
ES2 Series straight closed two-point press with entire welded frame
Introduction
- Entire welded steel frame designed for high rigidity and stability during stamping operations
- Pneumatic friction clutch and brake for reliable drive engagement
- Eight-face slide guidance to ensure precise reciprocating motion
- Hydraulic overload protector to prevent damage from excessive load
- Imported dual solenoid valve for stable hydraulic control
- PLC from a recognized international brand for programmable process control
- Dual-loop control integrating electrical and mechanical cam systems
- Guide posts and bushings for accurate alignment
- Automatic electric lubrication system for reduced maintenance
- Optional: air cushion, moving bolster, quick die changer, wet clutch
Parameters (images available on product page)
- Product parameter images showing dimensional drawings and configuration details
Features / Technical specifications
- Frame: Entire welded steel frame providing high rigidity
- Drive: Pneumatic friction clutch and brake (standard)
- Slide guidance: Eight-face guide of slide
- Protection: Hydraulic overload protector
- Hydraulic components: Imported dual solenoid valve
- Control: PLC from a well-known international brand
- Control loops: Dual loop control of electrical and mechanical cam
- Guidance components: Guide post and guide bushing
- Lubrication: Automatic electric lubrication
- Optional features: air cushion, moving bolster, quick die changer, wet clutch
- Brand: 扬力集团
