Mechanical press PSP
formingdrawingportal

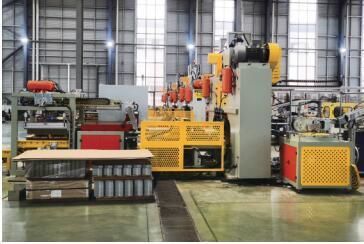

Mechanical press - PSP - Yangli Group Co., Ltd. - forming / drawing / portal
Mechanical press - PSP - Yangli Group Co., Ltd. - forming / drawing / portal
Mechanical press - PSP - Yangli Group Co., Ltd. - forming / drawing / portal - image - 2
Mechanical press - PSP - Yangli Group Co., Ltd. - forming / drawing / portal - image - 3
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
forming, drawing
Structure
portal
Other characteristics
horizontal, high-speed, high precision, single-stroke
Force

Max.: 1,600 kN

Min.: 300 kN

Opening

400 mm, 500 mm
(16 in, 20 in)

Stroke

Max.: 210 mm
(8.268 in)

Min.: 100 mm
(3.937 in)

Description

Product overview
  • Product name: PSP Series gantry type high-speed precision press
  • Brand: 扬力
  • Type: Gantry high-speed precision press, PSP series


Visuals
  • Main image filename: 5353e3347eefdedba237c4dcf50de51b.jpg
  • Additional images: PSP 1.jpg, PSP 2.jpg, dde1aeb68c92adbdf2d37ca4d0661082.jpg, 818a78815beffdc11425bc8b01eb473b.jpg


Series products
  • J31 series (closed single-point press)
  • J36 series (closed double-point press)
  • BE4 series (closed four-point blanking press)
  • TL4 series (closed four-point multi-link multi-station press)
  • LS4 series (closed four-point multi-link press)


Technical data / page tags
  • Product overview
  • Technical parameters
  • Download product manual
  • Related cases
  • Request a quote


Technical specifications
  • Model (series): PSP series
  • Brand: 扬力
  • Application: Drawing and forming of various cans and lids (tea caddy, wine box, aerosol can, food can lid, beverage can lid, milk powder can, chemical tank cover, rotary cap, pop can)
  • Frame: Entire steel welded frame
  • Action: Single-action press with vertically mounted crankshaft
  • Guide: Eight-face zero-clearance circulating rolling guide for slide
  • Clutch: Combined dry-type pneumatic friction clutch
  • Safety: Imported dual safety valve for clutch safety and reliability
  • Lubrication: Forced thin-oil lubrication system with progressive lube block and lube-fault alarm
  • Overload protection: Hydraulic overload protector
  • Die adjustment: Manual with scale (≤45t); Motorized with digital display (≥63t)
  • Integration: Compatible with CNC feeding systems for high-speed automated precision production lines
