Mechanical press MF1
formingstampingfor sheet metal

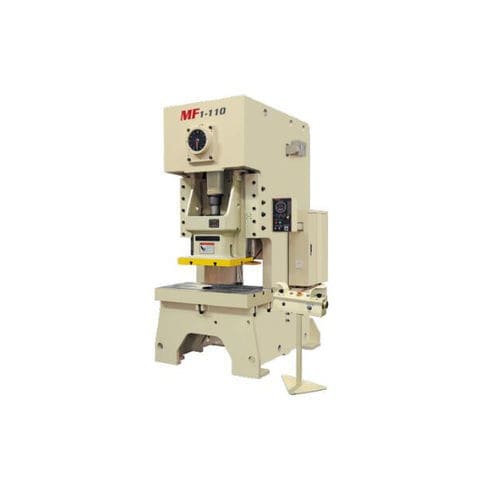

Mechanical press - MF1 - Yangli Group Co., Ltd. - forming / stamping / for sheet metal
Mechanical press - MF1 - Yangli Group Co., Ltd. - forming / stamping / for sheet metal
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
forming, stamping
Applications
for sheet metal
Structure
frame, with fixed table
Control
PLC-controlled
Other characteristics
fixed, with front loading/unloading, high precision, with automatic feeder
Force

Min.: 160 kN

Max.: 2,000 kN

Opening

Min.: 220 mm
(9 in)

Max.: 450 mm
(18 in)

Stroke

Min.: 60 mm
(2.362 in)

Max.: 200 mm
(7.874 in)

Hydraulic pump power

Min.: 3 kW

Max.: 18.5 kW

Overall length

Min.: 1,280 mm
(50 in)

Max.: 2,190 mm
(86 in)

Overall width

Min.: 1,040 mm
(41 in)

Max.: 1,610 mm
(63 in)

Overall height

Min.: 2,280 mm
(90 in)

Max.: 3,850 mm
(152 in)

Description

Product description
  • Open-front mechanical press from the MF1 series designed for high-precision stamping and forming operations.
  • Robust steel welded frame.
  • Main motor: SIEMENS.
  • Combined dry pneumatic friction clutch and brake; gear transmission immersed in oil.
  • Six-face rectangular extended guides for improved slide guidance.
  • Rigid overload protector integrated for stroke/end-position safety.
  • Die height adjustment: manual with scale for MF1-16/25; electrical with digital display for MF1-45 and larger.
  • Lifting balance cylinder included for models above MF1-16; balance cylinder uses manual lubrication.
  • Imported dual solenoid valve and PLC from international brands for reliable control.
  • Electrical forced grease lubrication system and one set blowing device supplied.
  • Integrated interface with electrical cam; buttons, switches and air circuit breaker from international brands.


Options
  • Air cushion.
  • Automatic feed shaft device.
  • Light curtain.
  • Slide knockout device.
  • Other automation and safety devices on request.


Technical specifications
  • Series: MF1 series.
  • Type: Open-front mechanical press with rigid overload protector and fixed bed.
  • Frame: Steel welded frame, high rigidity.
  • Drive: SIEMENS main motor; combined dry pneumatic friction clutch and brake; gear immersed in oil.
  • Guides: Six-face rectangular lengthened guides.
  • Die height adjustment: Manual (with scale) for MF1-16/25; electric (digital display) for MF1-45 and larger.
  • Balance system: Lifting balance cylinder (except MF1-16); balance cylinder manual lubrication.
  • Hydraulics/controls: Imported dual solenoid valve; PLC of international brand; integrated interface with electrical cam.
  • Maintenance: Electrical forced grease lubrication system; one set blowing device.
  • Safety/controls: Buttons, switches and air circuit breakers of international brands; optional light curtain and other safety/automation devices.
  • Brand: 扬力集团
