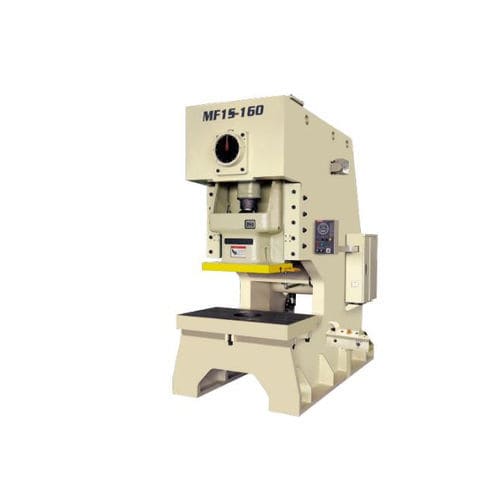

Mechanical press MC1Spneumaticdeep drawingframe
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic, mechanical
- Function
- deep drawing
- Structure
- frame
- Control
- PLC-controlled, with integrated controller
- Other characteristics
- with automatic feeder, air chamber
- Force
Max.: 2,000 kN
Min.: 250 kN
- Opening
Max.: 450 mm
(18 in)Min.: 250 mm
(10 in)- Stroke
Max.: 2,000 mm
(78.74 in)Min.: 80 mm
(3.15 in)- Hydraulic pump power
Max.: 18.5 kW
Min.: 3 kW
- Overall length
Max.: 2,840 mm
(112 in)Min.: 2,025 mm
(80 in)- Overall width
Max.: 1,595 mm
(63 in)Min.: 1,050 mm
(41 in)- Overall height
Max.: 3,600 mm
(142 in)Min.: 2,290 mm
(90 in)
Description
Product information
Introduction
Options
Technical specifications / features
- Product name: MC1S/MF1S series deep-throat press
- Brand: 扬力集团
- Model: MC1S / MF1S
- Main image filename: 8893175a51b52532d6ccf63e09aea519.jpg
- Additional image filenames: 112ccee36166a144440fa0efb32ce7c8.jpg (MF1SS.jpg), d996412ca4532f8f72e5fba052487925.jpg (MF1SSSS.jpg)
Introduction
- Steel welded frame with deep‑throat design for extended reach.
- Combined dry pneumatic friction clutch and brake for controlled cycling.
- Drive gear immersed in oil for reliable lubrication.
- Six-face rectangular lengthened guide for improved guidance and durability.
- MF1S series: rigid overload protector.
- MC1S series: hydraulic overload protector.
- MC1S/MF1S-25: manual die-height adjustment with scale indicator.
- MC1S/MF1S-45 and larger: electrical die-height adjustment with digital display.
- Lifting balance cylinder to ensure slide stability.
- Imported dual solenoid valve for hydraulic control.
- Electrical forced grease lubrication system.
- Integrated interface with electrical cam included.
- PLC from international brand for control and automation.
Options
- Air cushion unit.
- Automatic feed shaft device.
- Light curtain safety system.
- Slide knockout device.
- Other automatic peripheral devices on request.
Technical specifications / features
- Frame: welded steel construction with deep‑throat configuration.
- Clutch/Brake: combined dry pneumatic friction clutch and brake for precise operation.
- Drive: gear immersed in oil to reduce wear and maintenance.
- Guide: six-face rectangular lengthened guide for accurate slide guidance.
- Overload protection: MF1S rigid protector; MC1S hydraulic protector.
- Die height adjustment: manual with scale on -25 model; electric digital adjustment on -45 and larger.
- Balance: lifting balance cylinder installed for slide stability.
- Hydraulics: imported dual solenoid valve for reliable control.
- Lubrication: electrical forced grease lubrication system for consistent lubrication.
- Control: integrated electrical interface with cam; PLC of international brand supplied.
- Available options: air cushion, automatic feeding shaft, light curtain, slide knockout and other automation modules.
