Mechanical press BP2
stampingcansfor the automotive industry

Mechanical press - BP2 - Yangli Group Co., Ltd. - stamping / cans / for the automotive industry
Mechanical press - BP2 - Yangli Group Co., Ltd. - stamping / cans / for the automotive industry
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
stamping
Applications
for the automotive industry, for packaging, cans
Structure
four column
Other characteristics
high-speed, high precision
Force

1,100 kN

Opening

320 mm, 350 mm
(13 in, 14 in)

Stroke

100 mm, 120 mm, 150 mm
(3.937 in, 4.724 in, 5.906 in)

Hydraulic pump power

22 kW

Description

Product name
Multi-station bottom-driven high-speed precision press BP2 series

Introduction
  • Complies with JIS Class 1 accuracy standard.
  • Bottom-mounted drive system ensures stable high-speed operation and a high-rigidity machine base.
  • Horizontally mounted crankshaft with a large span between force application points for strong eccentric load resistance.
  • Four-column slide guidance reduces guideway friction, ensures stable operation and high guiding accuracy, and prolongs die life.
  • Optimized for multi-station production of metal packaging aerosol lids, delivering high production efficiency and yield.
  • Model I: Standard configuration. Models II & III: High-rigidity configurations for thicker-gauge lids. Model IV: Long-stroke configuration for taller lids.


Applications
  • Multi-station production of aerosol lids for metal packaging.
  • High-volume stamping for can-making and packaging components.
  • Automotive and appliance stamping operations requiring high guiding accuracy and low die wear.


Images & media

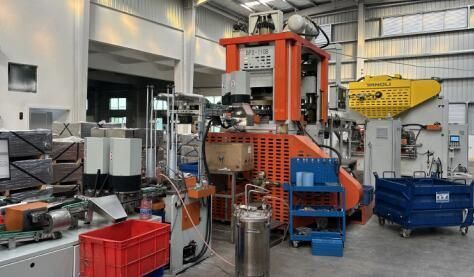

  • Main image: BP2 series multi-station bottom-driven high-speed precision press
  • Additional image: BP2 1.jpg
  • Additional image: BP 3.jpg


Brand
YANGLI

Technical specifications
  • Accuracy: JIS Class 1.
  • Drive type: Bottom-mounted drive for stable high-speed operation.
  • Machine base: High-rigidity design.
  • Crankshaft: Horizontally mounted with a large span between force application points for strong eccentric load resistance.
  • Guidance: Four-column slide guidance for low friction and high guiding accuracy.
  • Primary application: Multi-station production of metal aerosol lids.
  • Model variants: I (Standard), II & III (High-rigidity for thicker gauges), IV (Long-stroke for taller lids).
