Mechanical press WFP
pneumaticforgingfor sheet metal

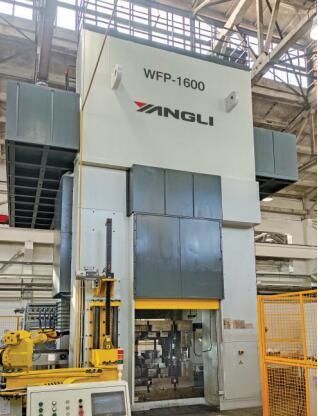

Mechanical press - WFP - Yangli Group Co., Ltd. - pneumatic / forging / for sheet metal
Mechanical press - WFP - Yangli Group Co., Ltd. - pneumatic / forging / for sheet metal
Mechanical press - WFP - Yangli Group Co., Ltd. - pneumatic / forging / for sheet metal - image - 2
Mechanical press - WFP - Yangli Group Co., Ltd. - pneumatic / forging / for sheet metal - image - 3
Add to favorites
Compare this product

Characteristics

Operation
pneumatic, mechanical
Function
forging
Applications
for sheet metal, for automotive parts, cans
Structure
column type
Other characteristics
warm
Force

Max.: 12,000 kN

Min.: 6,300 kN

Opening

Max.: 1,900 mm
(75 in)

Min.: 800 mm
(31 in)

Stroke

Max.: 800 mm
(31.496 in)

Min.: 320 mm
(12.598 in)

Hydraulic pump power

Max.: 500 kW

Min.: 110 kW

Description

Introduction
  • Crown-and-column welded structure; slide and bed are entire cast steel pre-tightened by tie-rod bolts, designed for warm forging operations.
  • Herringbone gear in high-strength alloy steel for stable drive performance and low noise.
  • Separated pneumatic friction clutch and brake; wet-type clutch available as an option.
  • Eight-face rectangular extended guide for high load capacity and deflection resistance.
  • Overload protector with high sensitivity and thread-based shut-height adjustment for stable setup and repeatability.
  • Forced progressive oil lubrication system with monitored distributor; optional mechanical or hydraulic lower knockout.


Technical specifications
  • Model: WFP series (Warm forging press)
  • Structure: Crown-and-column welded structure
  • Slide & bed: Entire cast steel, pre-tightened by tie-rod bolts
  • Gear type: Herringbone gear in high-strength alloy steel
  • Clutch/Brake: Separated pneumatic friction clutch and brake; wet-type clutch optional
  • Guide: Eight-face rectangular extended guide for high load and deflection resistance
  • Safety: Overload protector with high sensitivity
  • Shut height adjustment: Thread-based adjusting mechanism for stability and reliability
  • Lubrication: Forced progressive oil lubrication system with distributor monitoring
  • Knockout: Optional mechanical or hydraulic lower knockout


Applications
  • Automotive stamping and forging
  • Can-making and metal forming
  • Hot die forging processes
  • Piezoelectric component manufacturing
  • Black-goods (small appliance) production
  • White-goods (large household appliance) production


Series & related models
  • LS4 series closed four-point multi-link press
  • TL4 series closed four-point multi-link multi-station press
  • BE4 series closed four-point blanking press


Documentation & resources
  • Product page presents images (examples: WFP 1.jpg, WFP 2.jpg). The technical-parameters section contains no machine-readable text and no downloadable PDF manual was provided on the page.
