Mechanical press TL4
stampingfor sheet metalfor cans

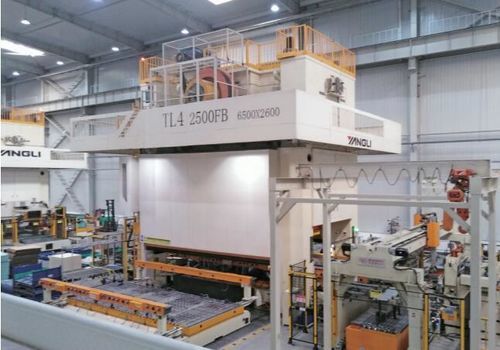

Mechanical press - TL4 - Yangli Group Co., Ltd. - stamping / for sheet metal / for cans
Mechanical press - TL4 - Yangli Group Co., Ltd. - stamping / for sheet metal / for cans
Mechanical press - TL4 - Yangli Group Co., Ltd. - stamping / for sheet metal / for cans - image - 2
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
stamping
Applications
for sheet metal, for automotive parts, for cans
Structure
four column
Other characteristics
transfer
Force

Max.: 36,000 kN

Min.: 8,000 kN

Stroke

580 mm, 750 mm, 800 mm, 900 mm
(22.835 in, 29.528 in, 31.496 in, 35.433 in)

Hydraulic pump power

Max.: 500 kW

Min.: 132 kW

Description

Product name
TL4 series closed four-point multi-link multi-station transfer press

Product classification
  • Mechanical press
  • Closed four-point multi-link multi-station transfer press


Technical data (page structure)
  • Tabs: product introduction, technical parameters, product manual download, related cases, product inquiry


Page images (file names)
  • Main image: 7cfb30e01f4ec86319cf40dfd0a7615f.jpg
  • Display image: 82772ba527f96162ffcab03e780c2fbb.jpg
  • Other example images: 3da03d40e186a37a601770975c60b737.jpg; 9ee878d3657143f7af6e6250a64c4efc.jpg; b0d57dc8785b0ba76084d4a0d7c72a22.jpg


Related cases listed on the page
  • Automotive stamping solutions
  • Can-making (container) stamping solutions
  • Hot die-forging press forging solutions


Series products listed on the page (examples)
  • TL4 series closed four-point multi-link multi-station transfer press
  • BE4 series closed four-point blanking press
  • LS4 series closed four-point multi-link press
  • J36 series closed two-point press


Manufacturer
扬力集团股份有限公司

Features / Technical specifications
  • Drive type: multi-link drive with six links
  • Multi-link system optimized using dedicated software
  • Major parts optimized by FEM analysis
  • Construction: welded crown, column and bed pre-tightened with tie rod bolts for high rigidity
  • Gearing: drive gear made of high-strength alloy steel; herringbone gear on high-speed pair; tooth-ground hardened straight gear on low-speed pair
  • Asynchronous drive reducing slide lateral force
  • Slide guidance: eight-face rectangular guide
  • Brake: part-revolution pneumatic friction clutch brake; optional imported wet-type clutch brake
  • Hydraulic overload protector with high sensitivity
  • Automatic oil lubrication system
  • Imported safety dual solenoid valve
  • Control: double control with electrical cam and mechanical cam
  • Optional accessories: air cushion, tonnage gauge, anti-vibration pads
  • Page content items: product introduction, technical parameters, product manual download, related cases, product inquiry (no explicit EAN or price listed)
