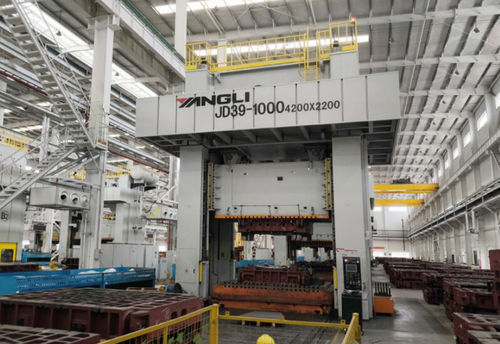

Mechanical press J39 compressionstraight-sidevertical
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- compression
- Structure
- straight-side
- Other characteristics
- vertical
- Force
Max.: 25,000 kN
Min.: 4,000 kN
- Opening
1,200 mm, 1,300 mm, 1,500 mm
(47 in, 51 in, 59 in)- Stroke
Max.: 1,250 mm
(49.213 in)Min.: 600 mm
(23.622 in)- Hydraulic pump power
Max.: 450 kW
Min.: 75 kW
Description
◆ Big and main parts are optimized by FEM.
◆ Welded crown, column and bed are pre-tightened with tie rod bolt; press with high intensity and rigidity.
◆ Asynchronous drive with small slide lateral force.
◆ Drive gear of high strength alloy steel; herringbone gear of high speed gear pair; tooth grinded hardened straight gear of low speed gear pair.
◆ Eight-face rectangle guide of slide.
◆ Part revolution pneumatic friction clutch brake; optional imported wet type clutch brake.
◆ Hydraulic overload protector with high sensitivity.
◆ Automatic oil lubrication.
◆ Imported safety dual solenoid valve.
◆ Double control: elec. cam and mech. cam.
◆ Optional: air cushion, tonnage gauge, anti-vabrication pads.
