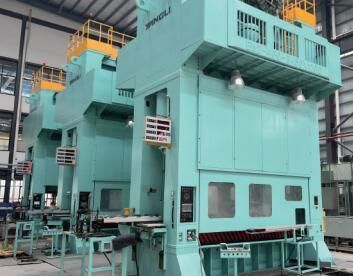

Mechanical press EMdrawingdeep drawingfor sheet metal
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- drawing, deep drawing
- Applications
- for sheet metal, for aluminum
- Structure
- eccentric
- Other characteristics
- vertical, high-speed, transfer, with front loading/unloading, high precision
- Force
3,150 kN, 4,000 kN, 5,000 kN, 6,000 kN
- Opening
800 mm, 850 mm, 900 mm, 1,000 mm
(31 in, 33 in, 35 in, 39 in)- Stroke
500 mm, 600 mm, 700 mm, 800 mm
(19.685 in, 23.622 in, 27.559 in, 31.496 in)- Hydraulic pump power
Min.: 55 kW
Max.: 110 kW
Description
Product name
Key features
Technical specifications
Applications & compatible parts
Documentation & page sections
Manufacturer / category
- EM series closed two-point multi-station transfer drawing press (heavy-duty)
Key features
- Vertical mounted spindle shaft with eccentric gear drive on both sides; idle wheel applied; large pitch at the connection-rod force point for improved load-deflection resistance.
- Higher structural strength of forced parts compared with crankshaft presses; resists crankshaft deformation.
- Accuracy standard: JIS-1.
- Three-piece separated frame; tie rods pre-tightened to 1.5× nominal force; frame rigidity 1/8000.
- Separated dry-type clutch with high torque; eight-face lengthened guide for high positional accuracy.
- Designed for high-speed operation; front moving door for access; lower oil drip box for maintenance.
Technical specifications
- Drive: Vertical spindle shaft, eccentric gear drive on both sides.
- Transmission: Idle wheel; large pitch at the connection-rod force point.
- Structure: Three separated-frame design; reinforced forced parts vs. crankshaft presses.
- Accuracy: Conforms to JIS-1 standard.
- Frame & fixation: Tie rods pre-tightened to 1.5× nominal; frame rigidity 1/8000.
- Clutch & guidance: Separated dry-type clutch (high torque); eight-face lengthened guide for precision.
- Operation: High-speed capable; front moving door; lower oil drip box.
Applications & compatible parts
- Suitable for deep drawing and transfer forming of battery cases and similar deep-drawn components.
- Example compatible Forsquare aluminum case numbers: 71173203, 33262101, 66220112.
Documentation & page sections
- Page sections: product introduction, technical parameters, downloads (download section present; no PDF found on page), related cases.
- Product images: main: 12f0649be5b35f0e377689ed7aa20c85.jpg; additional: 61e27738bb730204b1a27e8c2d840b35.jpg, 0d9ceac591f914cb6e27812173093b73.jpg.
Manufacturer / category
- Category: Battery-case specialized press
- Brand: 扬力集团股份有限公司
