Mechanical press MG2
formingforgingstamping

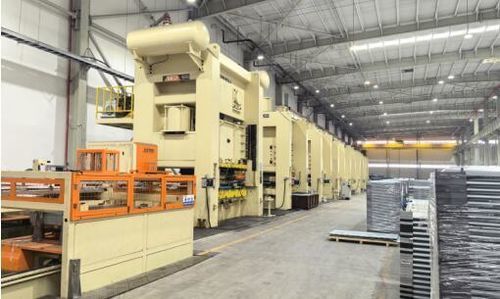

Mechanical press - MG2 - Yangli Group Co., Ltd. - forming / forging / stamping
Mechanical press - MG2 - Yangli Group Co., Ltd. - forming / forging / stamping
Mechanical press - MG2 - Yangli Group Co., Ltd. - forming / forging / stamping - image - 2
Mechanical press - MG2 - Yangli Group Co., Ltd. - forming / forging / stamping - image - 3
Mechanical press - MG2 - Yangli Group Co., Ltd. - forming / forging / stamping - image - 4
Mechanical press - MG2 - Yangli Group Co., Ltd. - forming / forging / stamping - image - 5
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
forming, stamping, forging
Applications
for the automotive industry, for industrial applications, cans
Structure
bridge
Control
PLC-controlled, with integrated controller
Other characteristics
with automatic feeder
Force

Max.: 8,000 kN

Min.: 1,100 kN

Stroke

Max.: 400 mm
(15.748 in)

Min.: 110 mm
(4.331 in)

Description

Product information
Product: Gantry two-point press, MG2 series
Brand: 扬力
Type: Gantry press for stamping and forming operations

Key features
  • JIS I accuracy
  • Entire steel welded frame
  • Double crankshafts, reverse rotated to eliminate lateral forces
  • Combined dry friction clutch (wet clutch optional)
  • Eight-face lengthened guides
  • Hydraulic overload protector
  • Electric adjustment with digital display
  • Lifting balance cylinder; balance cylinder manual oil lubrication
  • Imported dual solenoid valve
  • Electric grease lubrication
  • Integrated control panel with electric cam and touch screen
  • PLC control from international brand
  • Contactor and push-buttons from international brand
  • One set blowing device included


Optional features
  • Wet clutch
  • Air cushion
  • Light curtain
  • NC feeder
  • Motor with inverter
  • Slide knockout device
  • Safety door


Applications
  • Stamping solutions for the automotive industry
  • Stamping solutions for tank and container manufacturing
  • Solutions for forging and appliance industries


Images / Visuals
  • Product images available in the Parameters/Download section (several high-resolution photos)


Technical specifications
  • Accuracy: JIS I
  • Frame: Entire steel welded
  • Crankshafts: Double, reverse rotated to eliminate lateral forces
  • Clutch: Combined dry friction (wet clutch optional)
  • Guides: Eight-face lengthened guide
  • Protection: Hydraulic overload protector
  • Adjustment: Electric adjustment with digital display
  • Balance: Lifting balance cylinder; manual oil lubrication for balance cylinder
  • Valves: Imported dual solenoid valve
  • Lubrication: Electric grease lubrication
  • Control panel: Integrated panel with electric cam and touch screen
  • Control: PLC of international brand
  • Electrical components: Contactor and push-buttons of international brand
  • Included accessory: One set blowing device
  • Optional accessories: Air cushion, light curtain, NC feeder, motor with inverter, slide knockout device, safety door
