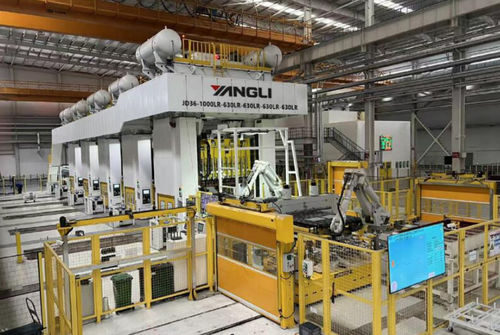

Mechanical press J36trimmingpunchingforging
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- forging, punching, trimming
- Structure
- straight-side, eccentric
- Other characteristics
- vertical
- Force
Min.: 4,000 kN
Max.: 25,000 kN
- Opening
1,200 mm, 1,300 mm
(47 in, 51 in)- Stroke
Min.: 400 mm
(15.748 in)Max.: 1,000 mm
(39.37 in)- Hydraulic pump power
Min.: 55 kW
Max.: 335 kW
Description
◆ Big and main parts are optimized by FEM.
◆ Welded crown, column and bed are pre- tightened with tie rod bolt; press with high intensity and rigidity.
◆ Asynchronous drive with small slide lateral force.
◆ Drive gear of high strength alloy steel; herringbone gear of high speed gear pair; tooth grinded hardened straight gear of low speed gear pair.
◆ Eight-face rectangle guide of slide.
◆ Part revolution pneumatic friction clutchbrake; optional imported wet type clutch brake.
◆ Hydraulic overload protector with high sensitivity.
◆ Automatic oil lubrication.
◆ Imported safety dual solenoid valve.
◆ Double control: elec. cam and mech. cam.
◆ Optional: air cushion, moving bolster (JD36-400/500), tonnage gauge, anti- vabrication pads.
