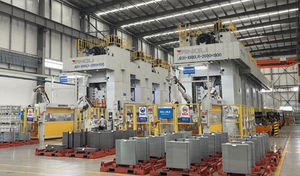

Mechanical press BE2
blankingautomaticPLC-controlled

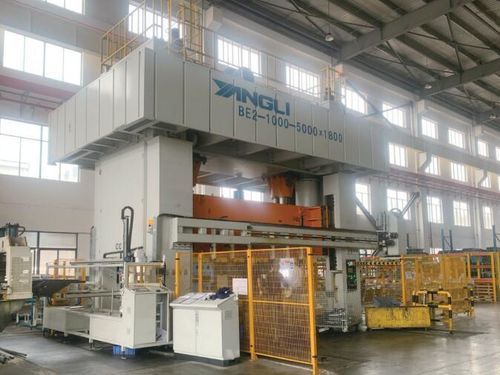

Mechanical press - BE2 - Yangli Group Co., Ltd. - blanking / automatic / PLC-controlled
Mechanical press - BE2 - Yangli Group Co., Ltd. - blanking / automatic / PLC-controlled
Mechanical press - BE2 - Yangli Group Co., Ltd. - blanking / automatic / PLC-controlled - image - 2
Mechanical press - BE2 - Yangli Group Co., Ltd. - blanking / automatic / PLC-controlled - image - 3
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
blanking
Control
automatic, PLC-controlled
Force

4,000 kN, 5,000 kN, 6,300 kN, 8,000 kN, 10,000 kN

Opening

300 mm, 350 mm, 700 mm
(12 in, 14 in, 28 in)

Stroke

250 mm, 350 mm
(9.843 in, 13.78 in)

Hydraulic pump power

Max.: 160 kW

Min.: 55 kW

Description

Product name
  • Straight two-point blanking press BE2 Series (closed type)


Introduction
  • Welded crown, columns and bed with pre‑tensioned tie rods to ensure structural rigidity
  • Part‑revolution pneumatic friction clutch and brake for precise cycle control
  • Eight‑face slide guidance with guide posts and guide bushings for stable slide movement
  • Hydraulic overload protector to prevent mechanical overloading
  • Imported dual solenoid valve for reliable hydraulic control
  • PLC from a recognized international brand for programmable operation
  • Dual‑loop control combining electrical and mechanical cam monitoring
  • Automatic thin‑oil main lubrication system
  • Recommended working load: less than 70% of rated press tonnage
  • Optional equipment: tonnage gauge, hydraulic cushion


Technical specifications
  • Construction: welded crown, columns and bed with pre‑tightened tie rods
  • Drive: part‑revolution pneumatic friction clutch and brake
  • Slide guidance: eight‑face slide guide; guide posts and guide bushings
  • Protection & control: hydraulic overload protector; imported dual solenoid valve; PLC of a major international brand
  • Control: dual‑loop control (electrical and mechanical cam)
  • Lubrication: automatic thin‑oil main lubrication system
  • Load recommendation: service load should be less than 70% of press rated tonnage
  • Optional equipment: tonnage gauge, hydraulic cushion
