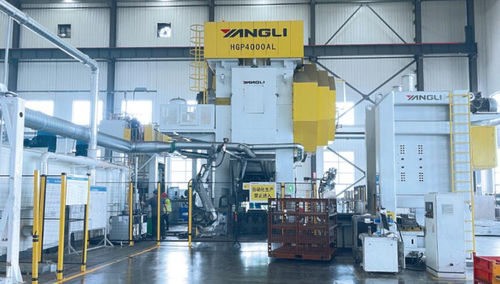

Mechanical press HFP

forginghot

◆ The spm is up to 50-100 times/min, with high working speed, short contact time between the mold and the workpiece, low temperature rise and high life of the mold; ◆ Flywheel rotation inertia, high output energy, especially suitable for all kinds of parts of hot forging and extrusion technology. HGP machine tool adopts two-stage transmission structure, adding a set of gears to drive, and the output energy is higher than HFP machine; ◆ Combined frame is hydraulic pre-tightened by high intensity tie rod, easy for disassemblyand transportion. Steel welded column and crown with temperting to elminate stresses,casting bed, with high rigidity and accuracy. Widened table to enhance application; ◆ Wide-body two-point integral connecting rod and extended guide rail design,strong anti-deviant load capacity, can be set in multiple stations; ◆ With side window, transverse feeding, combined with the stepping manipulatorto achieve multi-station automatic forging, forging automation degree is high; ◆ ”X” type guide design can effectively make up for the change of guide clear ance caused by temperature rise; ◆ Casting slide with high rigidity. Shut height adjusting device is driven by hydraulic motor with reasonable structure; ◆ Clutch and brake with floating insert friction block design, simple and reliable structure, easy maintenance; And adopt tooth guide, brake, clutch operation precision is high, brake and clutch noise is small, friction block life is higer;Brake with forced cooling system, brake temperature rise is small, can achievehigh speed single operation; ◆ The control system integrates air pressure monitoring, shaft temperature monitoring,
