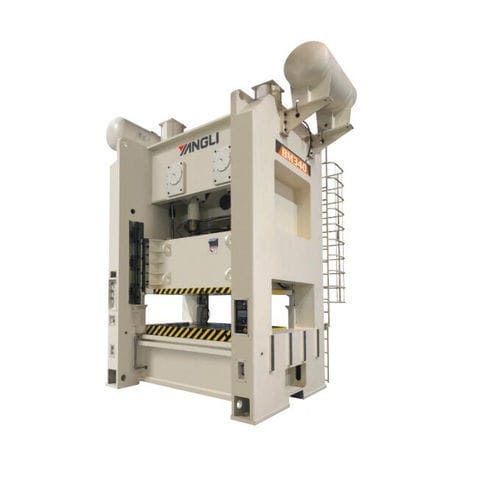

Mechanical press BM
drawingfor battery poleframe

Mechanical press - BM - Yangli Group Co., Ltd. - drawing / for battery pole / frame
Mechanical press - BM - Yangli Group Co., Ltd. - drawing / for battery pole / frame
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
drawing
Applications
for battery pole
Structure
frame
Other characteristics
vertical, transfer
Force

3,000 kN

Opening

800 mm
(31 in)

Stroke

400 mm, 500 mm, 560 mm
(15.748 in, 19.685 in, 22.047 in)

Description

Introduction
  • Entire steel welded frame providing high structural intensity;
  • Designed to conform to JIS Grade 1 accuracy;
  • Vertical-mounted crankshaft with short pivot distance for high rigidity; equipped with overrun protector;
  • Geartrain oil-bathed and fully enclosed within the frame for durability;
  • Eight-face lengthened guide rails ensuring high positional accuracy;
  • Press accuracy adjustable via the adjustable eight-face guide;
  • Idle gear arranged with a large distance between two force points to improve anti-bias capability;
  • Compatible with square aluminium pipe profiles (examples: 52148, 33220, 66220).


Technical specifications
  • Product name: Transfer drawing press BM series
  • Brand: 扬力集团
  • Commercial model: BM series
  • Product category: Battery-case dedicated machine (mechanical press / battery-case dedicated machine)
  • Page image files: 1728af6a20f8e7361f1065c21c896b7d.jpg (main), 44ed971e6b3f1e75ba9e35cc187c6fab.jpg (BM1.jpg), 5567c7334ec3dcc1e1f4b341a48bcd16.jpg (BM2.jpg)
  • Related series: J31 series closed single-point press, J36 series closed double-point press, BE4 series closed four-point blanking press, TL4 series closed four-point multi-link multi-station press, LS4 series closed four-point multi-link press
