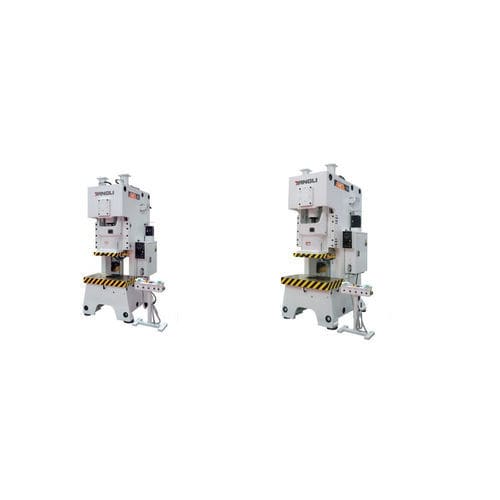

Mechanical press MC1framesingle-columnPLC-controlled
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Structure
- frame, single-column
- Control
- PLC-controlled, with integrated controller
- Other characteristics
- fixed
- Force
Max.: 4,000 kN
Min.: 160 kN
- Opening
Max.: 550 mm
(22 in)Min.: 220 mm
(9 in)- Stroke
Max.: 250 mm
(9.843 in)Min.: 60 mm
(2.362 in)- Hydraulic pump power
Max.: 37 kW
Min.: 3 kW
- Overall length
Max.: 3,145 mm
(124 in)Min.: 1,500 mm
(59 in)- Overall width
Max.: 1,920 mm
(76 in)Min.: 1,040 mm
(41 in)- Overall height
Max.: 4,895 mm
(193 in)Min.: 2,280 mm
(90 in)
Description
Introduction
Illustrations
Technical specifications
- JIS I accuracy.
- Steel welded frame with high rigidity.
- Fixed strokes-per-minute (SPM) configuration.
- Combined dry friction clutch; optional wet clutch available.
- Six-face rectangular lengthened guide (MC1-315/400 with eight-face lengthened guide).
- Hydraulic overload protector.
- Adjustment methods: MC1-16 manual with scale display; MC1-25 manual with numeric display; MC1-45 and larger electrical adjustment with digital display.
- Lifting balance cylinder (not on MC1-16); balance cylinder with manual oil lubrication.
- Imported dual solenoid valve and electrical forced grease lubrication.
- Integrated control panel with electronic cam; PLC, contactor and push-buttons from international brands.
- One blowing device included; optional accessories available.
Illustrations
- Product images, diagrams and technical illustrations are available on the product page for various MC1 sizes.
Technical specifications
- Product: Open-front single-point press, MC1 series.
- Accuracy class: JIS I.
- Frame: Steel welded frame for high rigidity.
- Guide system: Six-face rectangular lengthened guide; MC1-315/400 equipped with eight-face lengthened guide.
- Drive/clutch: Combined dry friction clutch (wet clutch optional).
- SPM: Fixed.
- Overload protection: Hydraulic overload protector.
- Model-specific adjustment: MC1-16 manual (scale); MC1-25 manual (numeric); MC1-45 and larger electronic (digital).
- Balance/lifting: Lifting balance cylinder (except MC1-16); balance cylinder manual oil lubrication.
- Valves and lubrication: Imported dual solenoid valve; electrical forced grease lubrication.
- Control: Integrated electronic cam panel; PLC, contactor and push-buttons of international brands.
- Included: One set blowing device.
- Optional: Air cushion; light curtain; motor with inverter; slide knockout device; bolster LR housing; automation devices.
