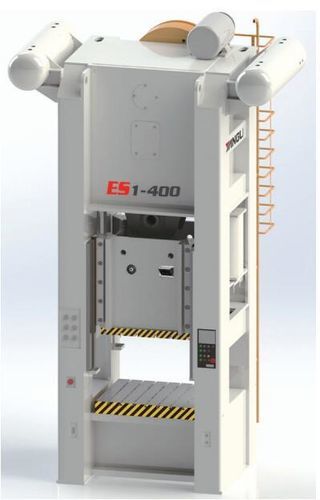

Mechanical press ES1

framestraight-sideautomatic

Introduction
The ES1 series straight single-point press features an integral steel welded frame engineered for high rigidity. It combines pneumatic friction clutch and brake, eight-face slide guidance and hydraulic overload protection to ensure stable production and operator safety. PLC control and imported solenoid valves support precise, repeatable operation. Optional equipment includes air cushion, moving bolster and quick die changer.

Main features

• Entire steel welded frame for high intensity and rigidity
• Pneumatic friction clutch and brake for dependable drive control
• Eight-face guide of slide with guide post and guide bushing
• Hydraulic overload protector for safety
• Imported dual solenoid valve for hydraulic control
• PLC from a reputable international brand for automation
• Dual loop control of electrical and mechanical cam
• Automatic electric lubrication
• Optional: air cushion, moving bolster, quick die changer

Parameters
Product parameter images are provided on the product page for detailed dimensional and configuration information.

Technical specifications

• Product name: ES1 series straight single-point press
• Brand: 扬力
• Category: Product center > Mechanical presses > Closed presses
• Series/model: ES1 series
• Page technical tags: product introduction; technical parameters; download product manual; related cases
• Main image filename: 8856f77f0b00bc1a9524ce24e6f47fd4.jpg
• Additional image filenames: f48210d7b71da09f718826036cee7dbe.jpg (ES1.jpg), 76c71ff39fa25a0e0401d0c3cd099272.jpg (ES2.jpg)
