Mechanical press J31 series
compressionframestraight-side

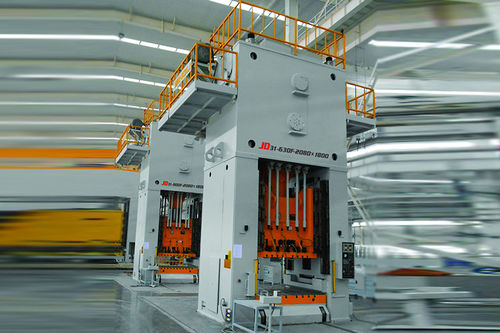

Mechanical press - J31 series - Yangli Group Co., Ltd. - compression / frame / straight-side
Mechanical press - J31 series - Yangli Group Co., Ltd. - compression / frame / straight-side

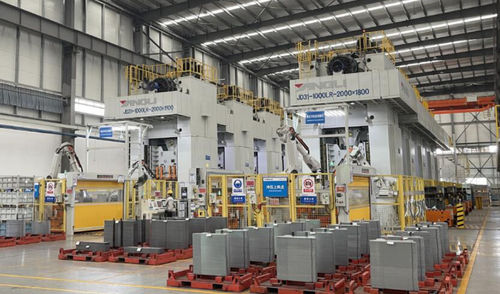

Mechanical press - J31 series - Yangli Group Co., Ltd. - compression / frame / straight-side - image - 2
Mechanical press - J31 series - Yangli Group Co., Ltd. - compression / frame / straight-side - image - 3
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
compression
Structure
frame, straight-side
Control
PLC-controlled
Other characteristics
vertical
Force

Max.: 20,000 kN

Min.: 2,500 kN

Opening

700 mm, 800 mm, 950 mm, 1,000 mm
(28 in, 31 in, 37 in, 39 in)

Stroke

400 mm, 500 mm
(15.748 in, 19.685 in)

Hydraulic pump power

Max.: 160 kW

Min.: 55 kW

Description

◆ Big and main parts are optimized by FEM. ◆ Steel welded frame is pre-tightened with tie rod bolt； presswith high intensity and rigidity. ◆ Pneumatic friction clutch brake. ◆ With guide post andbushing. ◆ Elec. oil lubrication. ◆ Imported safety dual solenoid valve. ◆ Double control: elec. cam and mech.cam. ◆ Optional: air cushion, moving bolster, tonnage gauge, anti-vabrication pads.
