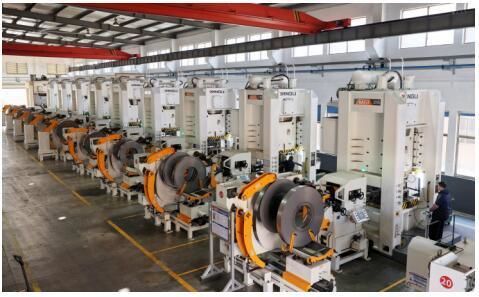

Mechanical press MG1formingstampingfor cans
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Function
- forming, stamping
- Applications
- for automotive parts, for cans
- Structure
- portal
- Control
- PLC-controlled
- Other characteristics
- high precision, with automatic feeder, single-punch
- Force
Min.: 1,100 kN
Max.: 10,000 kN
- Opening
Min.: 350 mm
(14 in)Max.: 750 mm
(30 in)- Stroke
Min.: 100 mm
(3.937 in)Max.: 400 mm
(15.748 in)
Description
Introduction
Illustrations / Images
Technical data / Page sections
Related applications
Features / Specifications (summary)
- MG1 series gantry-type single-point press designed for precision stamping and forming operations.
- JIS I accuracy standard; entire steel welded frame; combined dry friction clutch (wet clutch optional).
- Electrical adjustment with digital display; integrated panel including electrical cam and touch screen; PLC control of international brand.
- Eight-face lengthened guide, hydraulic overload protector, lifting balance cylinder; imported dual solenoid valve; electrical grease lubrication and electrical oil circulating lubrication (model dependent).
- Standard equipment: one blowing device; optional accessories include air cushion, light curtain, NC feeder, inverter-driven motor, slide knockout device and safety door.
Illustrations / Images
- Product images available on the page (see product gallery for multiple views and detail shots).
Technical data / Page sections
- Product description (includes machine overview and detail images)
- Technical parameters (section present; specific values to be confirmed)
- Downloadable manuals (PDF available when provided)
- Related cases and applications
- Request for quotation (RFQ) contact available on the page
Related applications
- Automotive stamping solutions
- Can-making (container) stamping solutions
- Hot die forging/press forging solutions
- Piezoelectric component manufacturing
- Black-goods appliance production
- White-goods appliance production
Features / Specifications (summary)
- Series: MG1 series
- Machine type: Gantry-type single-point press
- Main attributes: High accuracy (JIS I), high performance
- Frame: Entire steel welded frame
- Clutch: Combined dry friction clutch (wet clutch optional)
- Guides: Eight-face lengthened guides
- Protection: Hydraulic overload protector
- Control & electricals: PLC (international brand); contactor and buttons of international brand; integrated panel with electrical cam and touch screen
- Lubrication: Electrical grease lubrication; electrical oil circulating lubrication (adopted on some models)
- Standard equipment: Blowing device (1 set); balance cylinder with manual oil lubrication option
- Optional equipment: Air cushion, light curtain, NC feeder, motor with inverter, slide knockout device, safety door
- Brand: 扬力集团
