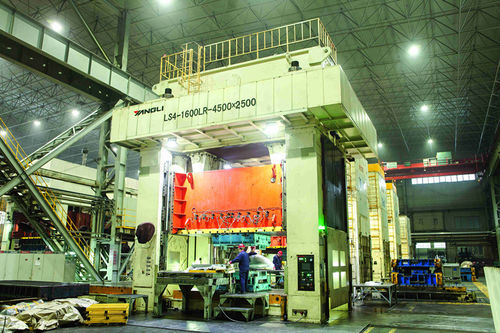

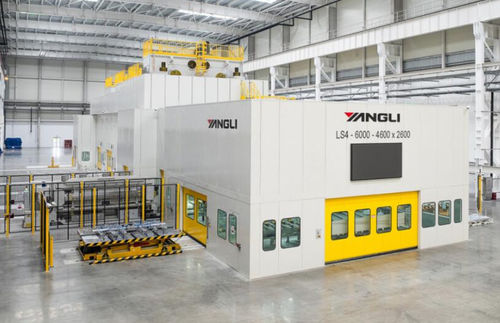

Mechanical press LS4
compressionstraight-sidevertical

Mechanical press - LS4 - Yangli Group Co., Ltd. - compression / straight-side / vertical
Mechanical press - LS4 - Yangli Group Co., Ltd. - compression / straight-side / vertical
Mechanical press - LS4 - Yangli Group Co., Ltd. - compression / straight-side / vertical - image - 2
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
compression
Structure
straight-side
Other characteristics
vertical
Force

Max.: 25,000 kN

Min.: 6,000 kN

Opening

1,200 mm, 1,400 mm, 1,500 mm
(47 in, 55 in, 59 in)

Stroke

13 mm
(0.512 in)

Hydraulic pump power

Max.: 450 kW

Min.: 200 kW

Description

◆ Multi-link drive: six links or eight links. ◆ Multi-link system is designed with specific software. ◆ Big and main parts are optimized by FEM. ◆ Asynchronous drive with small slide lateral force. ◆ High speed drive: herringbone gear. ◆ Eight-face rectangle guide of slide. ◆ Part revolution pneumatic friction clutch brake; optional imported wet type clutch brake. ◆ Hydraulic overload protector. ◆ Main lubrication: automatic oil lubrication, optional heating and cooling system . ◆ Double control: elec. cam and mech. cam. ◆ Optional: air cushion, quick die change device.
