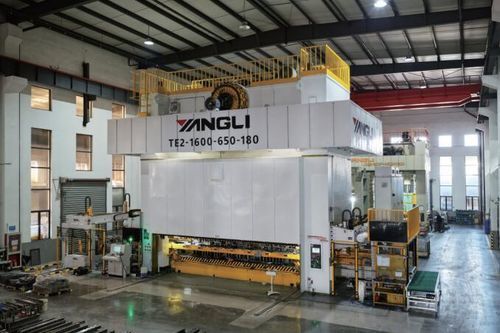

Motorized press TE2electricstampingfor production
Add to favorites
Compare this product
Characteristics
- Operation
- electric, motorized
- Function
- stamping, for production
- Structure
- frame, straight-side
- Other characteristics
- high-speed, transfer
- Force
Max.: 25,000 kN
Min.: 4,000 kN
- Stroke
400 mm, 500 mm, 600 mm, 700 mm
(15.748 in, 19.685 in, 23.622 in, 27.559 in)- Hydraulic pump power
Max.: 400 kW
Min.: 75 kW
Description
Product overview
Technical data
Options & accessories
- Manufacturer: 扬力
- Closed-frame straight two-point transfer press, TE2 series, designed for multi-station transfer stamping applications.
- Main components optimized by FEM; welded crown, columns and bed pre-tensioned with tie-rod bolts for high rigidity.
- Asynchronous drive minimizing lateral slide force; drive gears in high-strength alloy steel with herringbone high-speed pair and ground, hardened straight low-speed pair.
- Eight-face rectangular slide guidance; part-revolution pneumatic friction clutch-brake with optional imported wet-type clutch-brake.
- Hydraulic overload protector with high sensitivity, automatic oil lubrication system and imported safety dual solenoid valve.
- Dual cam control available: electrical cam and mechanical cam.
Technical data
- Series: TE2 series — closed-frame straight two-point transfer press.
- Structural design: FEM-optimized main parts; welded crown, columns and bed pre-tensioned with tie-rod bolts for increased stiffness.
- Drive system: asynchronous motor drive to reduce slide lateral forces.
- Gearing: high-strength alloy steel drive gears; herringbone gears for high-speed pairs; tooth-ground hardened straight gears for low-speed pairs.
- Slide guidance: eight-face rectangular guide ensuring accurate slide travel.
- Clutch & brake: part-revolution pneumatic friction clutch-brake; optional imported wet-type clutch-brake.
- Protection & safety: hydraulic overload protector (high sensitivity); imported dual solenoid safety valve.
- Lubrication: automatic oil lubrication system for consistent maintenance.
- Control: selectable dual control — electrical cam and mechanical cam.
Options & accessories
- Available options: air cushion, tonnage gauge, anti-vibration pads.
- Additional customization: transfer fixtures and tooling can be supplied on request.
- Suitable for production lines requiring multi-station stamping with reliable control and protection features.
Other Yangli Group Co., Ltd. products

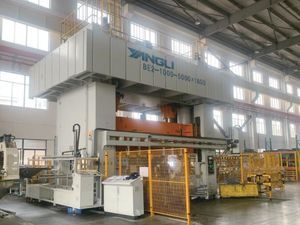

Mechanical press
