Mechanical press J76G
stampingfor sheet metalframe

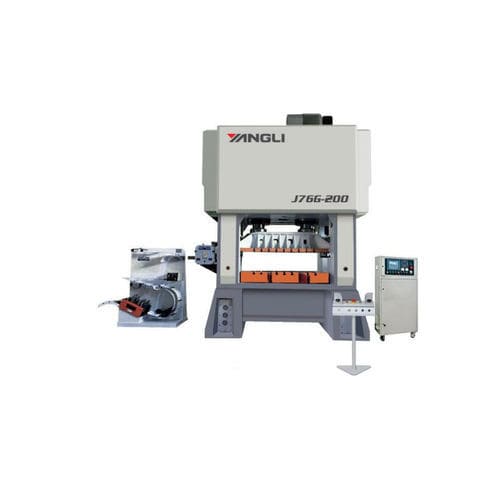

Mechanical press - J76G - Yangli Group Co., Ltd. - stamping / for sheet metal / frame
Mechanical press - J76G - Yangli Group Co., Ltd. - stamping / for sheet metal / frame
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
stamping
Applications
for sheet metal
Structure
frame, straight-side
Control
automatic
Other characteristics
high-speed, high precision, with automatic feeder
Force

800 kN, 1,250 kN, 2,000 kN, 3,000 kN

Opening

380 mm, 400 mm, 420 mm, 450 mm
(15 in, 16 in, 17 in, 18 in)

Stroke

30 mm
(1.181 in)

Hydraulic pump power

22 kW, 30 kW, 45 kW, 55 kW

Description

Introduction
  • Application fields: High-speed precision automated stamping for new energy vehicle motors, compressor motors and high-efficiency industrial motor laminated cores.
  • Static accuracy: JIS Special Grade; bottom dead center dynamic accuracy: GB/T 29548 Ultra-Precision Grade.
  • Two-section high-strength cast frame.
  • Reverse balance device ensures optimal slide balance during stamping.
  • Linear ball bearings for guide sleeves.
  • Motorized die-height adjustment with LED digital display (accuracy: 0.10 mm).
  • Forced circulation thin-oil lubrication system ensures complete lubrication.
  • Electronic cam controller with user-friendly HMI for high-precision operation.
  • J76G series features a closed two-point slide configuration.
  • Compatible with uncoiler, leveler and automatic feeder for fully automated production.


Features / technical specifications
  • Series: J76G SHP
  • Product type: Straight closed two-point high-speed precision press
  • Application: High-speed precision stamping for motor laminations and similar components
  • Static accuracy: JIS Special Grade
  • Bottom dead center dynamic accuracy: GB/T 29548 Ultra-Precision Grade
  • Frame: Two-section high-strength cast body
  • Slide balance: Reverse balance device
  • Guides: Linear ball bearings for guide sleeves
  • Die-height adjustment: Motorized with LED digital display, accuracy 0.10 mm
  • Lubrication: Forced circulation thin-oil lubrication system
  • Control: Electronic cam controller with HMI
  • Slide configuration: Closed two-point slide
  • Automation compatibility: Supports uncoiler, leveler and automatic feeder integration
  • Brand: 扬力集团
