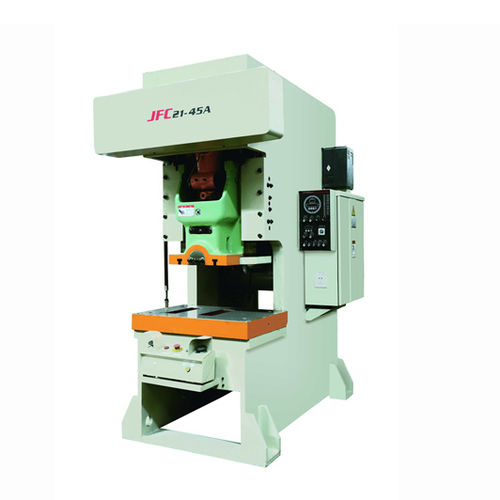

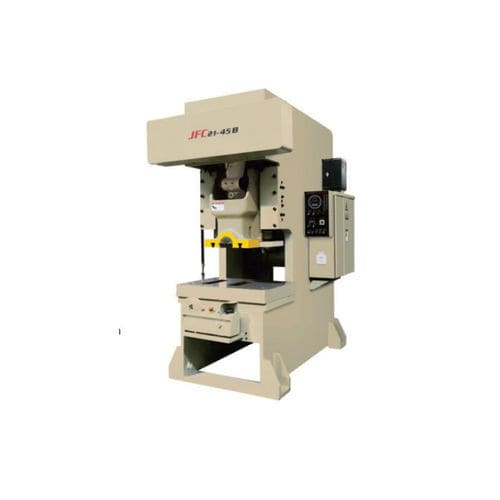

Electromechanical press JFC21
compressionrollercolumn type

Electromechanical press - JFC21 - Yangli Group Co., Ltd. - compression / roller / column type
Electromechanical press - JFC21 - Yangli Group Co., Ltd. - compression / roller / column type
Electromechanical press - JFC21 - Yangli Group Co., Ltd. - compression / roller / column type - image - 2
Add to favorites
Compare this product

Characteristics

Operation
electromechanical
Function
compression
Structure
column type, roller
Other characteristics
vertical, digital, high-speed, with automatic feeder
Force

Min.: 250 kN

Max.: 1,100 kN

Opening

250 mm, 270 mm, 300 mm, 320 mm, 350 mm
(10 in, 11 in, 12 in, 13 in, 14 in)

Stroke

30 mm, 40 mm, 50 mm
(1.181 in, 1.575 in, 1.969 in)

Hydraulic pump power

Min.: 4 kW

Max.: 15 kW

Overall length

Min.: 183 cm
(72 in)

Max.: 202 cm
(80 in)

Overall width

Min.: 112 cm
(44 in)

Max.: 143 cm
(56 in)

Overall height

Min.: 208 cm
(82 in)

Max.: 304 cm
(120 in)

Description

◆ Application:air conditioner fin, car radiator air conditoner radiator, steel coil, silicon steel. ◆ Combined dry pneumatic friction clutch. ◆ Press bigger than JFC21-45B: lifting balance cylinder for slide. ◆ Imported dual solenoid valve. ◆ Forced oil lubrication system. ◆ PLC of international brand. ◆ Hydraulic overload protector. ◆ JFC21-25B~45B:manual die height adjustment with scale display;Press bigger than JFC21-63B:electrical die height adjustment with digital display. ◆ Equipped with multi-cutter valve,blow valve,automatic press line with automatic feeder. ◆ Hydraulic overload protector. ◆ JLC21 series: slide with eight face guide, and optional hydraulic overload protector and roller guide .
