Mechanical press SHP
stampingfor automotive partsframe

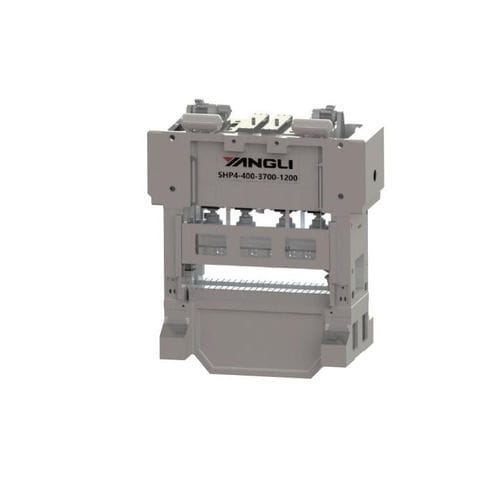

Mechanical press - SHP - Yangli Group Co., Ltd. - stamping / for automotive parts / frame
Mechanical press - SHP - Yangli Group Co., Ltd. - stamping / for automotive parts / frame
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
stamping
Applications
for automotive parts
Structure
frame
Control
automatic, with integrated controller
Other characteristics
digital, high-speed, high precision, with automatic feeder, with decoiler
Force

Max.: 8,000 kN

Min.: 1,000 kN

Stroke

30 mm, 80 mm
(1.181 in, 3.15 in)

Hydraulic pump power

Max.: 132 kW

Min.: 55 kW

Description

Introduction
  • Product name: SHP series closed-frame high-speed precision press
  • Brand: 扬力集团
  • Application fields: high-speed precision automated stamping for new energy vehicle motors, compressor motors and high-efficiency industrial motor laminated cores
  • Page images: b5a244e8cde089128471da0502ce6f84.jpg; c79842cc6ce7d801f945e231f3bf8bb5.jpg (SHP 1.jpg); ec87ac11fef4099a88ff5d931936cc38.jpg (SHP 2.jpg)
  • Technical data tags: product overview; technical parameters; download product manual; related cases; request a quote


Features
  • Static accuracy: JIS Special Grade
  • Bottom dead center dynamic accuracy: GB/T 29548 Ultra-Precision Grade
  • Body: high-strength cast body (SHP series adopts a three-section design for enhanced rigidity)
  • Balance: reverse balance device to optimize slide balance during stamping
  • Guides: SHP series uses eight-sided guideways with circulating roller blocks for high-precision guidance
  • Die height adjustment: motorized with LED digital display, accuracy 0.10 mm
  • Lubrication: forced-circulation thin-oil lubrication system ensuring continuous lubrication of critical components
  • Control: electronic cam controller with intuitive HMI for precise motion control
  • Slide support: available in three-point or four-point slide configurations
  • Automation compatibility: compatible with uncoiling, leveling and automatic feeding devices for fully automated stamping lines


Technical specifications
  • Primary applications: automated high-speed stamping for vehicle motors, compressor motors and industrial motor laminated cores
  • Static accuracy standard: JIS Special Grade
  • BDC dynamic accuracy standard: GB/T 29548 Ultra-Precision Grade
  • Frame design: three-section high-strength cast body (series)
  • Balance mechanism: reverse balance device for slide stability
  • Guiding system: eight-sided guideways with circulating roller blocks (linear-ball bearings used on other variants)
  • Die adjustment: motorized, LED display, ±0.10 mm resolution
  • Lubrication system: forced circulation thin-oil system
  • Controller: electronic cam controller with HMI
  • Slide point options: three-point or four-point
  • Integration: designed for integration with decoilers, levelers and automatic feeders
