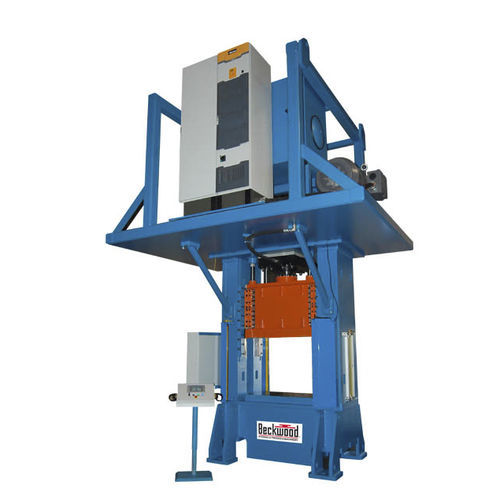

Hydraulic press

forgingassemblyexpanded metal

Frame Style - - Gib-Guided - Special Features - - • 8-Point Gib Guidance system • Variable Frequency Drive • Recipe Handling • Programmable Speed Control • Pre-fill Circuit Forging Press Custom Features: 8-point square gib-guidance system minimizes lateral movement under load Used to hot forge parts in the mining industry Parker SSD Variable Frequency Drive for increased energy efficiency & control Prefill circuit for improved energy efficiency & speed Calculated Ram Speeds: Approach: 0-274 IPM; Pressing: 0-75 IPM; Return: 365 IPM Dwell Capability Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler Light curtains guard the front & rear openings; bolt-on expanded metal guards cover side openings Common Features on Beckwood Presses: Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance Fully adjustable Parker cylinders with full rated tonnage throughout the stroke PressLink Remote Support module for complementary diagnostics & troubleshooting Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing Backed by Beckwood’s industry leading dedicated service and support team
