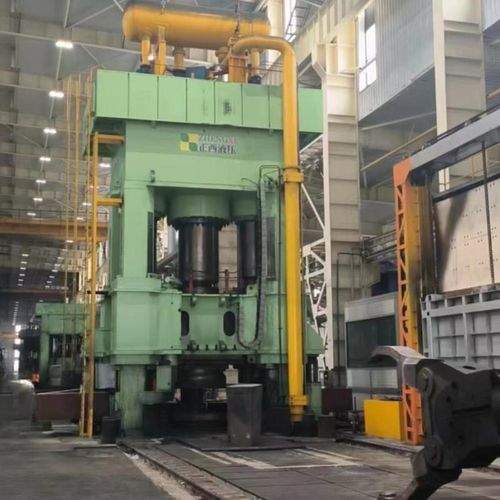

Hydraulic press Yz10
formingforgingpunching

Hydraulic press - Yz10 - Zhengxi Hydraulic - forming / forging / punching

Hydraulic press - Yz10 - Zhengxi Hydraulic - forming / forging / punching - image - 2

Hydraulic press - Yz10 - Zhengxi Hydraulic - forming / forging / punching - image - 3

Hydraulic press - Yz10 - Zhengxi Hydraulic - forming / forging / punching - image - 4

Hydraulic press - Yz10 - Zhengxi Hydraulic - forming / forging / punching - image - 5

Add to favorites

Compare this product

Go to the Zhengxi Hydraulic website for more information

Characteristics

Operation

hydraulic

Function

forming, forging, punching, welding

Structure

frame, four column, double

Control

automatic

Force

Max.: 31,500 kN

Min.: 8,000 kN

Stroke

Max.: 2,000 mm
(78.74 in)

Min.: 1,200 mm
(47.244 in)

Table width

Max.: 3,600 mm
(142 in)

Min.: 3,000 mm
(118 in)

Table length

Max.: 2,000 mm
(79 in)

Min.: 1,500 mm
(59 in)

Max. pressure

25 MPa

Return speed

Max.: 400 mm/s

Min.: 250 mm/s

Description

Frame type and four-column type structure Servo control system, high energy saving Fast 400-1000mm/s, forming 50-200mm/s Using Q355B low alloy steel plate material welding body. And the overall rigidity is strong Equipped with upper bolt and double support safety protection device Optional configurations include auxiliary centering devices, auxiliary punching devices, precision automatic forging, manipulators, and others. Application of Free Forging Hydraulic Press Free forging press is suitable for large forging parts with a simple appearance, used for forging various large shafts, rings, cakes, ingots, and plate processing. It is suitable for all kinds of carbon steel, alloy steel, tool steel, bearing steel, spring steel, stainless steel, and high-temperature alloy steel forging. Applied in aerospace, electric power, industry, ship, transportation, and other fields.
