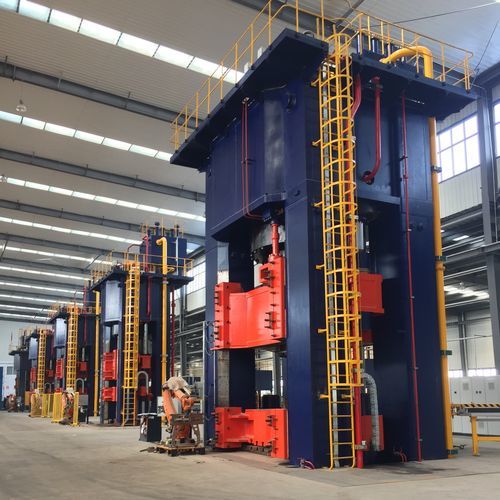

Forging press

hydraulicfor aluminumfor non-ferrous materials

Hot die forging presses are made for products with Aluminum and Magnesium materials and relative alloys, Main models include60MN, 80MN and 100MN hot die forging presses. Design, manufacture, erect and test-run identical pressesaccording tocustomer requirement, and provide whole solution on production of automobile hubs. Main models： 20MN～200MN hot die forging press Application Hot die forging presses are mainly used for forming of axis symmetric nonferrous metals. Features 01.With a double-column pre-stressed combination frame structure and multi-bar pretension technology, realizing improvement on the machine’s rigidity, stability, anti-fatigue capacity, service life and one time higher eccentric forging range 02.By using an articulated hinge rod, the plunger type cylinder reduces the rigid constraint to the movable beam and the horizontal force to the sealing joint of guide sleeve, posed by the main plunger, thus enhancing the sealing performance and prolonging the lifespan of guide sleeve 03.The excellent sealing performance contributes to remarkable decrease in deformation of machine frame as well as in the clearance between column and movable beam. What’s more, by adjusting the movable beam, the column and the guide plate can fit closely 04.With the application of pressure and position close-loop control system, the hydraulic forging press achieves a precise control over speed and position and reduces the processing times, thereby cutting the energy consumption and improving the forging precision and material utility.
