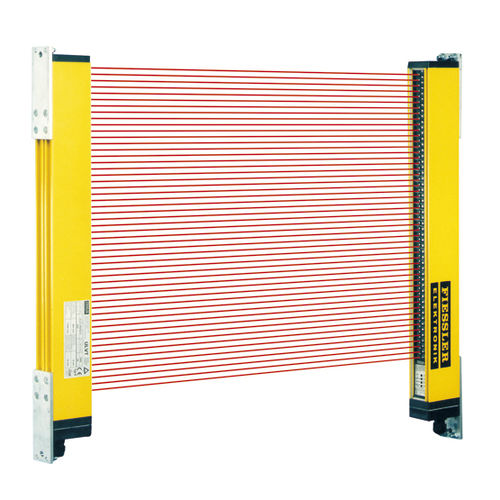

safety light curtain / multibeam / through-beam / IP65
ULVT series

{{requestButtons}}

Characteristics

  • Function:

    safety

  • Type of beam:

    multibeam

  • Configuration:

    through-beam

  • Protection level:

    IP65

  • Other characteristics:

    muting, hand protection, body protection, finger protection, infrared

  • Operating range:

    Min.: 0.3 m (0'11")

    Max.: 7 m (22'11")

Description

Properties
integrated control-unit with contactor control and restart activatable by DIP switches activatable
contactor/valves directly connectablly, switching capacity 0,5A/24V
smallest safety distances by short response times 4,5ms to 24,5ms, depending of the protection high
smallest obstacle recognition of 14mm from 0,3m to 7m range
protection heights of 100mm to 1900mm in 100mm steps
microprocessor monitoring of the safety functions
built in selfdiagnostic with error display
muting and stroke operation with optional safety control-unit PLSG
protective system IP65
