type 4 safety light curtain / multibeam / through-beam / IP65
BLVT series

{{requestButtons}}

Characteristics

  • Function:

    type 4 safety

  • Type of beam:

    multibeam

  • Configuration:

    through-beam

  • Protection level:

    IP65

  • Other characteristics:

    hand protection, body protection, finger protection, with integrated controller, for small parts

  • Operating range:

    7 m, 24 m (22'11")

Description

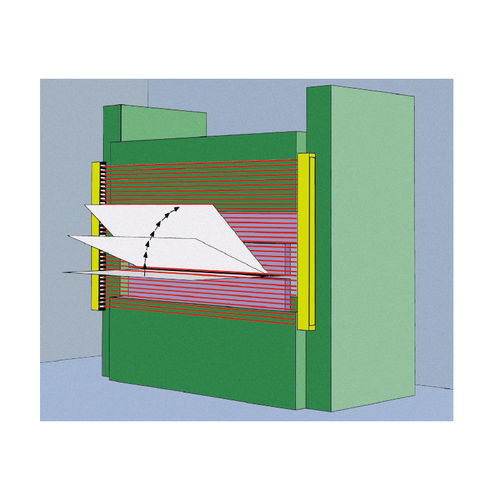

The transmitter generates infra-red light beams flashing at high speed in synchronous action. The parallel light beams with a spacing of 7,5mm or 14,3mm are monitored by miocro-controllers. The receiver evaluated the arriving beams in synchronous action to the transmitter.
Due to the closeness of the beams, a resolution of 14 mm / 30 mm is achieved. If an obstacle is placed into the protective field, i.e. at least iner lieght beam is interrupted, the hazardous movement of the machine is stopped, i.e. a new start is not possible.
