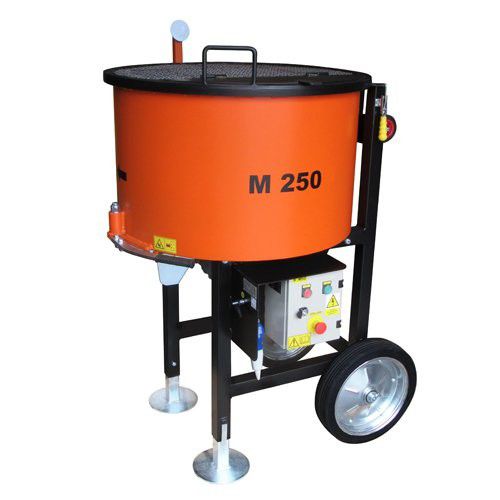

Electric concrete mixer M 250 R

mobileautomatic

Compulsory mixer M 250R has been specially developed for mixing rubber granulates and other lightweight mixtures. The prime advantage compared with traditional drum mixtures is the fast and complete mixing of individual mixture elements and simple cleaning thanks to the demountable mixing part ADVANTAGES very fast and easy cleaning of the mixer thanks to the demountable mixing part complete and fast mixing of individual mixture components low weight enabling easy transport and handling additional pair of auxiliary wheels enabling transport of the mixer in a horizontal position mixing blades fitted with easily replaceable polyamide scrapers use of reinforced safety elements (under-voltage release, terminal switch) operation requiring minimum maintenance low operation and the maintenance costs Working principle M 250R compulsory mixer functions on the principle of mixing blades rotating at high speeds around the axis of the static mixing tank. The mixing is done using four horizontal mixing blades with special replaceable polyamide scrapers which simultaneously wipe the mixture from the side and the whole bottom of the mixing tank. Mixtures are filled through the screen in the mixture cap. The mixed materials are discharged by turning the sliding segment on the bottom of the tank. M 250R offers the possibility to quickly dismantle the mixing part for simple cleaning of the tank. The mixing arms are driven by the maintenance-free front electric gearbox. To ensure maximum safety, safety elements are used – under-voltage release and terminal switch which disconnects the engine if the mixer cap is opened.
