Gas filter CV8airactivated carboncompact

gas filter
gas filter
Add to favorites
Compare this product
indicative price

Characteristics

Designed for
gas, air
Filtration element
activated carbon
Other characteristics
compact, low-pressure, V-form, absorption
Operating pressure

Min.: 50 Pa (0.007 psi)

Max.: 61 Pa (0.009 psi)

Flow rate

Min.: 1,640 m³/h (57,916.053 ft³/h)

Max.: 3,400 m³/h (120,069.867 ft³/h)

Description

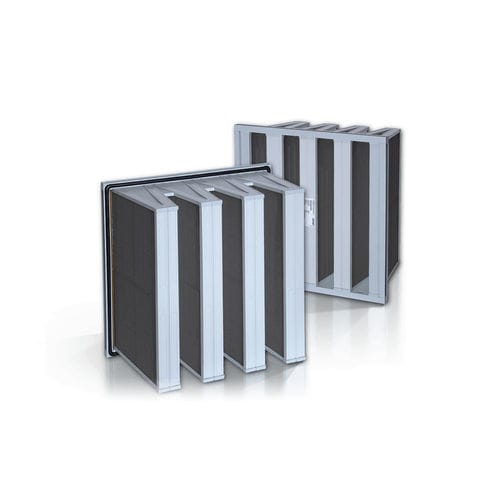

The CV8 Full Plastic Compact Carbon Filter is designed for the highest necessities in gas and odour filtration applications. Each CV8 Full Plastic filter contains eight Minipleats-Media Packs cast in V-shape technology to achieve the lowest pressure drop results and highest gas absorption capacity. Design: The side covers of the filter are made from rigid plastic with integrated water outlet slopes on both the up- and down-stream sides. Connection slots for the insertion of the pre-filter frame HFA-# are also included. These features, in combination with the reinforced profiles, provide maximum space for the filter media pack and obtain a high mechanical strength. The filters are supplied with a flat flange and an optional endless gasket creating a secure seal between the filter and each standard pre-filter holding frame.

Other FILT AIR products

Activated Carbon Filter CVB
