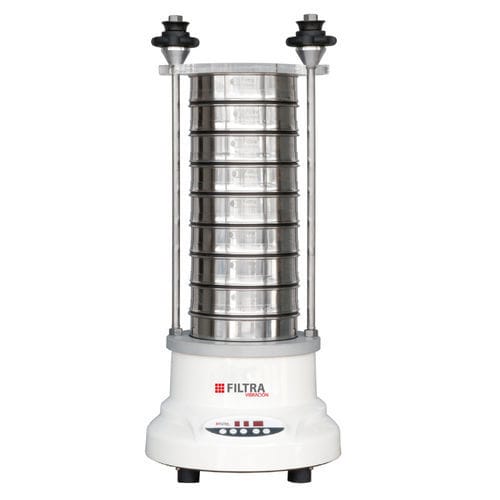

Dry sieving sieve shaker IRIS FTL-0200

for wet sievingfor pharmaceutical applicationscontrol

Compact and lightweight electromagnetic sieve shaker, for sieves from Ø60 to Ø203 mm. > Three-dimensional movement across the entire sieve column. > High efficiency for particle separation in both dry or wet processes. > Made of anodized aluminum with a polyurethane resin housing. > Digital display with power adjustment, time control, and settings for continuous or intermittent sieving. > Securing system with threaded rods, bakelite knobs, and a methacrylate lid. *Optional: Quick-release “Easy-Press” closure and wet sieving accessory. TECHNICAL DATA: > Type: Electromagnetic. > Sieving: Dry / Wet. > Granulometric separation. > Three-dimensional movement. > Maximum amplitude: 2 mm. > Power levels: 9. > Interval sieving: from 1 to 9 seconds. > Maximum number of sieves: - 8 (Ø200/203 X 50 mm height) - 16 (Ø200/203 X 25 mm height) > Mesh openings: - 20 μm a 125 mm (wet sieving) - 40 μm a 125 mm (dry sieving) INCLUDES: > Sieve shaker with connection cable. > Methacrylate lid. > Threaded closure system. > Instruction manual. OPTIONAL ACCESSORIES: Mesh & sheet metal sieves Wet sieving accessory “Easy-Press” closure Bottom and lid Self-cleaning balls Cleaning kit
