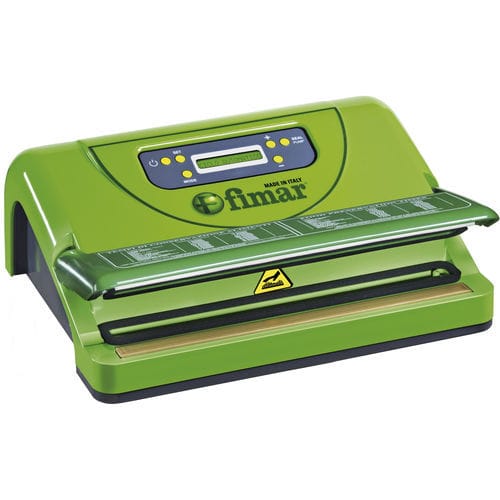

Automatic packing machine MSD/300P, BAR series

automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
automatic packing machine
Add to favorites
Compare this product


Operational mode
vacuum, tabletop
meat, cheese
Other characteristics
with sealing bar


Machine aimed at prolonging food preservation times, keeping intact the organoleptic characteristics. The use of specific embossed bags or containers creates a vacuum level that keeps intact the organoleptic characteristics and prevents the proliferation of bacteria at low temperatures. Stainless steel AISI 304 casing – oil bath pump for BAR500 model – digital control panel to set sealing and vacuum time – automatic start when lowering the upper bar – automatic bar opening at the end of the cycle. All vacuum machines can be used for vacuum in bags or containers with lids specifically designed for this purpose. Power Kw 0,75 kW (1 HP) power supply 230V/1N/50-60Hz Sealing bar 500 mm Vacuum pump 4 m³/h Max. vacuum obtainable 98% Useful chamber dimensions 520 x 380 x 210(h) mm Machine dimensions (l x l x h mm) 520 x 380 x 210(h) mm net weight (kg) 23 gross weight (Kg) 24 packaging dimensions (l x l x h mm) 610 x 420 x 300(h) mm packaging volume (m3) 0.076


No catalogs are available for this product.
