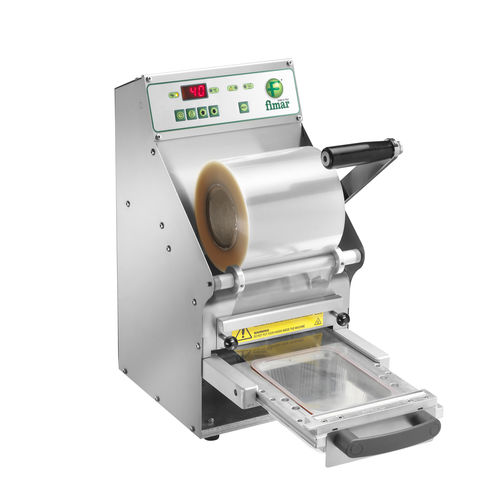

Manual heat sealer TS series
for the food industryfilmstainless steel

manual heat sealer
manual heat sealer
manual heat sealer
manual heat sealer
manual heat sealer
Add to favorites
Compare this product


Operating mode
for the food industry
Product applications
Other characteristics
stainless steel, vacuum

Min.: 0.5 kW

Max.: 3.5 kW


150 mm, 200 mm, 330 mm, 380 mm (6 in)


Machine for thermo sealing of foods inside the containers allowing to maintain fragrance and taste. Made of stainless steel AISI 304, with internal sealing plate to avoid burns, automatic film dragging with no manual aid, electronic sealing temperature control to perfectly seal the containers -automatic sealing for model TS1A – up to 9 pre-set programs – from 6 to 8 operating cycles per minute. Equipped with Multiform mould. Containers available on request. Power Kw 0,55 kW (0,7 HP) power supply 230V/1N/50Hz Reel width and diameter 150 mm – ø 160 mm -150 mt Machine dimensions (l x l x h mm) 240 x 390 x 500(h) mm net weight (kg) 20 gross weight (Kg) 23 packaging dimensions (l x l x h mm) 260 x 420 x 520(h) mm packaging volume (m3) 0.057
