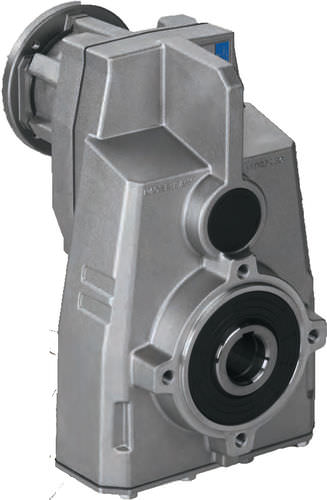

Helical gear reducer PE-A series

parallel-shaft2 - 5 kNmfor shaft

The PE-A series gearboxes are featured by aluminium and are available coupled to compact version motors ( PE ) or coupledto standard motors with B5 flange (PEK). The standard basic version is foreseen with hollow output shaft in order to have a self-adaptive cantilever installation with simple reaction arm. Thanks to their modular design a lot of technical solutions are possible : with solid output shaft, with feet, with output flange B5 or B14 flange. The reduction ratios , at 2 or 3 steps according to the different versions , are made with cylindrical gears with helical teeth, ground or shaved, designed according to ISO 6336 standards. Input shaft versions or units just equipped with coupling flange , without motor , are available. The input power goes up to 30 kW , according to the different sizes , and the output torque goes up to 2.100 Nm.
