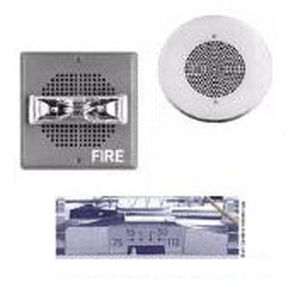

Strobe beacon E Series

LEDwith audio signal

Wheelock Series E Low Profile Speakers and Speaker Strobes are designed for high efficiency sound output, with dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. The low profile design incorporates a speaker mounting plate for faster and easier installation. Wall mount models are available with field selectable candela settings of 15/30/75/110cd or 135/185cd (multi-candela models), or 1575cd (single candela model) Ceiling mount models are available with field selectable candela settings of 15/30/75/95cd or 115/177cd (multi-candela models) Strobes produce 1 flash per second over the regulated voltage range Synchronize with Wheelock SM, DSM or panels with built-in Wheelock patented synch protocol Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts High efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ Fast installation with IN/OUT screw terminals using #12 and #18 AWG wires
