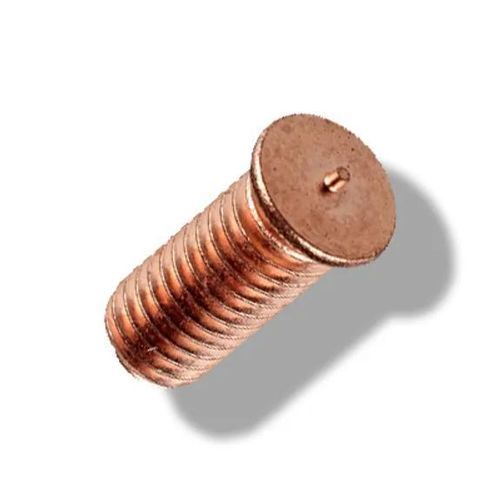

Threaded stud 0006717136

copper-coated steelcapacitor discharge welding

Overview
Capacitor-discharge weld stud designed to quickly attach studs to thin metal sheets while providing a clean, mechanically strong weld.

Usage and installation

• Process: capacitor-discharge welding (specific CD welding unit recommended, e.g. G&RCD66).
• Application: positioning a threaded fastener on thin metal sheets.
• Installation method: flat/flush mounting using a capacitor-discharge welding unit.

Advantages

• Does not leave marks on the opposite face when sheet thickness is greater than 0.5 mm.
• Simple to use and adjust.
• Good impact resistance.
• Fast and efficient welding operation.

Remarks

• The manufacturer offers other weld-on elements and variants adapted to specific needs.
• Customers who viewed this item also looked at weld-on columns.

Technical characteristics / specifications

• DirectIndustry reference: 0006717136
• Material: copper-plated steel
• Metric diameter: M3
• Length: 8 mm
• Recommended use: fixing threaded fasteners on thin metal sheets by capacitor-discharge welding
• Operating condition: effective on sheets thicker than 0.5 mm to avoid marks on the opposite face
