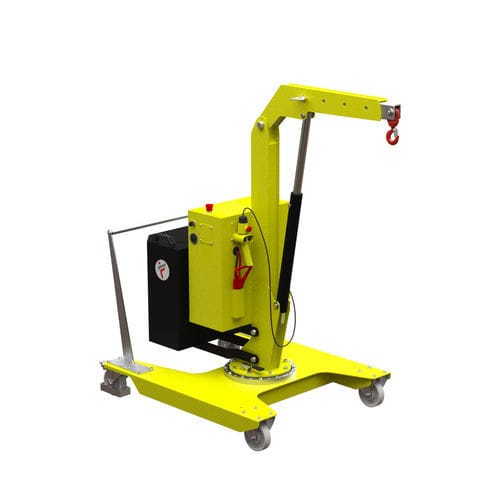

500 kg mini shop crane 01B5

hydraulictelescopicwith counterweight

Model 01B5 allows lifting and handling of loads of up to 500 kg. Crane rotates 360° with free rotation (lever in rest position) or can be locked every 30° (lever actuated) by means of a slewing ring at the base of the column. There are 2 handles to make rotation easy and smooth. Swivel hook with safety lock. Robust, removable push handle. The special feature that makes the 01B5 incredibly manoeuvrable is its frontal footprint of only 980 mm. This is the smallest size on the market. Crane easily manoeuvrable thanks to 2 pivoting high capacity wheels with bumper supports and parking brakes and 2 fixed front wheels with bearings. Entire chassis made of stove-enamelled steel equipped at the base with 2 useful forklift supports (for lifting and transporting the crane over long distances in complete safety) The raising and lowering of the arm is electrical and at a single, non-adjustable speed. They are done by operating 2 special controls on the hand control. There is also an emergency stop control on the hand control. The hydraulic system is equipped with a block valve that prevents the load from falling in the event of accidental hose rupture and a relief valve that prevents the crane from being overloaded. The arm is extendable in 4 positions and 3 types of optional arm extensions are available to increase the overhang to a maximum length of 2050 mm.
