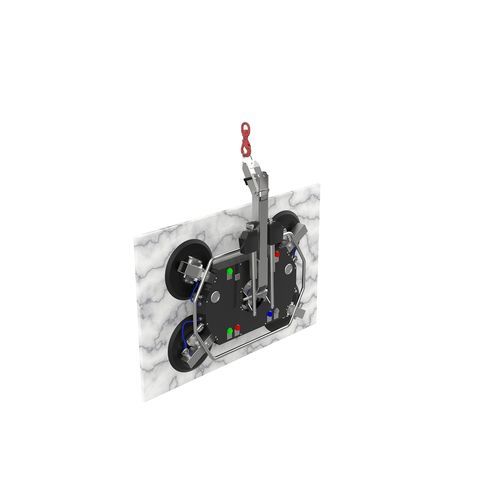

Marble vacuum lifter X-grip

for sheetsfor flat partsglass plate

Short description

Overview

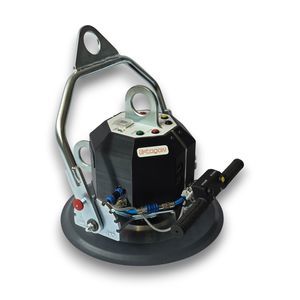

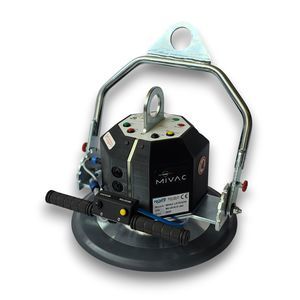

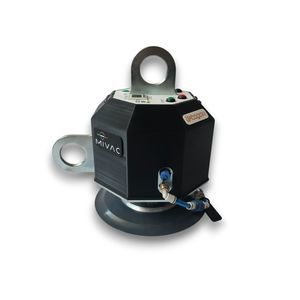

X-grip by MIVAC is a battery-powered, under-hook vacuum lifter designed for safe lifting, moving and positioning of large panels, slabs and flat loads. The unit is modular and can be fitted with extensions and additional suction cups to adapt to load dimensions and geometry.

Materials and compatible surfaces

• Glass and windows
• Sheet metal and metal components
• Marble, granite and ceramic slabs
• Composite and sandwich panels
• Plastic panels, Plexiglas and similar materials
• Wood panels with vacuum-compatible surfaces
• Doors, prefabricated elements and industrial components with smooth or slightly uneven surfaces

Typical uses and handling modes
X-grip mounts under the hook of cranes, mini-cranes, overhead cranes, hoists, jib cranes and spreaders. It supports horizontal and vertical handling, improving control during pick-up, orientation and placement operations.

Modularity and capacity
The standard configuration provides a 400 kg capacity. With optional extensions and eight oversized suction cups the system can reach up to 1,200 kg. Configurations can be customised to suit non-standard dimensions, weights or surface conditions.

Battery and operational freedom
Interchangeable batteries enable cordless operation without continuous connection to the electrical grid or pneumatic supply. Quick battery swaps minimise downtime and facilitate use across workshops, production lines, construction sites and on-site installations.

Key features

• Battery-powered under-hook vacuum lifter
• Standard capacity up to 400 kg
• Maximum capacity up to 1,200 kg with extensions and accessories
• Stand-alone operation (no continuous external power required)
• Interchangeable batteries for operational continuity
• Modular configuration adaptable to load size and geometry
• Horizontal and vertical handling capability
• Compatible with various suction cup types and seals
• Simple and intuitive controls
• Custom configurations available

Optional features

• Art. XG-BE — Electric tilt table 0°–90°
• Art. XG-RM — Manual rotation with 45° lock
• Art. XG-DPV — Single-circuit dual vacuum pump
• Art. XG-600 — Load capacity upgrade to 600 kg
• Art. PRO-1-100 — Extension with 100-kg suction cup kit
• Art. XG-DCV-13155 — EN 13155 double vacuum circuit option

Notes
The lifter is designed to integrate with existing lifting systems and may be equipped with specialised seals, auxiliary pumps or customised solutions for porous, rough or highly irregular materials.

Technical specifications

• Model: X-grip
• Manufacturer / brand: MIVAC
• Power: battery-powered with interchangeable battery packs
• Standard lifting capacity: 400 kg
• Maximum lifting capacity (with extensions/8 oversized suction cups): up to 1,200 kg
• Handling modes: horizontal and vertical
• Mounting: under-hook for cranes, mini-cranes, overhead cranes, hoists, jib cranes, spreaders
• Compatible materials: glass, sheet metal, marble, granite, ceramics, wood panels, plastics, composite panels, prefabricated elements, industrial components
• Modularity: configurable suction cup number and layout; extensions and optional accessories available
• Optional features: electric tilt table, manual rotation, dual vacuum pump, capacity upgrade kits, EN 13155 double vacuum circuit option
• Control: simple and intuitive controls (stand-alone system)
