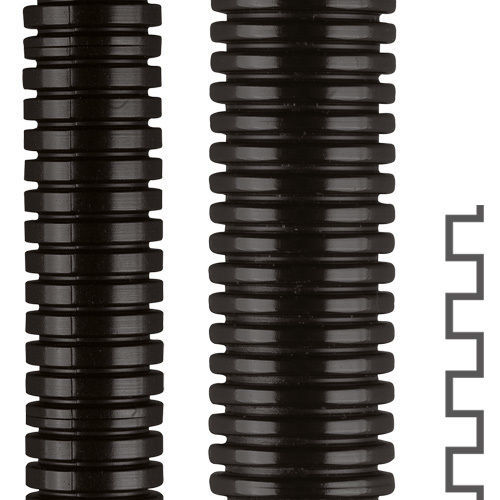

Protection conduit ROHRflex Move

tubularcorrugatedfor cables

Product Details
ROHRflex corrugated plastic tubings
Highly flexible protective all-plastic tubing, internally and externally corrugated for robotics, especially for cobots and small industrial robots at slow and medium speeds.

Material
Specifically modified polyolefin

Temperature Range
-40°C ... +120°C (up to +150°C)

Certifications

• CE
• RoHS
• REACH

Applications

• Automation

Properties

• Exceptional flexibility
• Tight bending radii
• Material properties are independent of humidity
• Flame-retardant, V2 according to UL94
• Extra UV-stabilized
• Airtight and liquid-tight
• Resistant to aqueous solutions (salts, acids, and alkalis)
• Largely resistant to solvents
• Free from silicone, cadmium, and halogens
• REACH and RoHS compliant

Variants Table
FLEXA No. | Colour | OD [mm] | Profile | ID [mm] | OD [mm] | BR stat. [mm] | BR dyn. [mm] | Weight [kg|m] | PU [m]
11231002016 | Black | 21.0 | fine | 16.6 | 21.2 | 25 | 120 | 0.040 | 50
11231002023 | Black | 28.4 | fine | 23.0 | 28.4 | 45 | 120 | 0.080 | 50
11231002029 | Black | 34.5 | fine | 28.9 | 34.3 | 55 | 130 | 0.095 | 25
11231002036 | Black | 42.5 | fine | 36.0 | 42.5 | 65 | 180 | 0.130 | 25

Fitting Products

• RQDR-AP: Rotatable tubing holder with screw-on plate / maximum mobility with red MOVE insert, especially for cobots and small industrial robots at slow and medium speeds in the field of robotics.
• RQDR-PS: Rotatable tubing holder for mounting on profile rails / maximum mobility with red MOVE insert, especially for cobots and small industrial robots at slow and medium speeds in the field of robotics.
• RQDR-KB: Rotatable tubing holder with velcro fastening, rotatable velcro strap holder incl. 50 cm velcro strap / maximum mobility with red MOVE insert, specially designed for cobots and small industrial robots operating at slow and medium speeds in the field of robotics.

Characteristics / Technical Specifications

• Product type: Highly flexible protective all-plastic tubing
• Material: Specifically modified polyolefin
• Temperature range: -40°C to +120°C (up to +150°C)
• Profile: Internally and externally corrugated
• Application: Robotics, cobots, small industrial robots, automation
• Certifications: CE, RoHS, REACH
• Flame-retardant: V2 according to UL94
• UV-stabilized: Yes
• Airtight and liquid-tight: Yes
• Resistant to: Aqueous solutions (salts, acids, alkalis), solvents
• Free from: Silicone, cadmium, halogens
• Compliance: REACH and RoHS
