Multilayer hose ROHRflex PA 12F+PA12for automotive applicationsfor railway application
Add to favorites
Compare this product
Characteristics
- Material
- PA12
- Applications
- for automotive applications, for railway application
- Norms
- DIN
- Other characteristics
- oil-resistant, UV-resistant, flame-retardant, halogen-free, self-extinguishing, IP68, silicone-free, corrugated, multilayer
- Inner diameter
Max.: 46.7 mm
(1.839 in)Min.: 6.6 mm
(0.26 in)- Outer diameter
Max.: 54.5 mm
(2.146 in)Min.: 10 mm
(0.394 in)- Temperature
Max.: 150 °C
(302 °F)Min.: -50 °C
(-58 °F)- Delivered length
25 m, 50 m
(82'00" , 164'00" )
Description

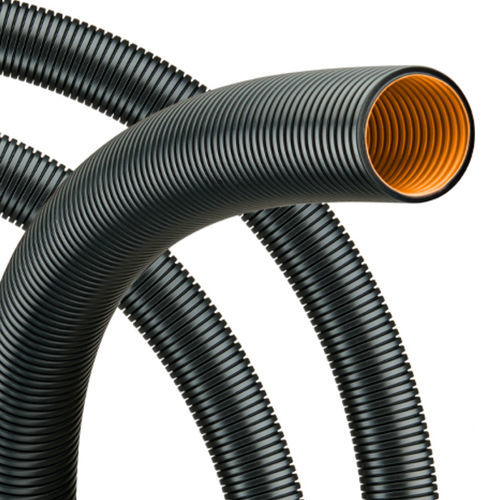

multilayer corrugated plastic tubing especially for outdoor applications with internationally approved standards, V2 acc.UL 94, EN 45545-2 (HL3).
Applications
• Automation
Properties
• high alternate bending strength
• oil and benzine resistant
• widely resistant to acid and solvents
• free of silicone, cadmium, halogen
• REACH and RoHS compliant
