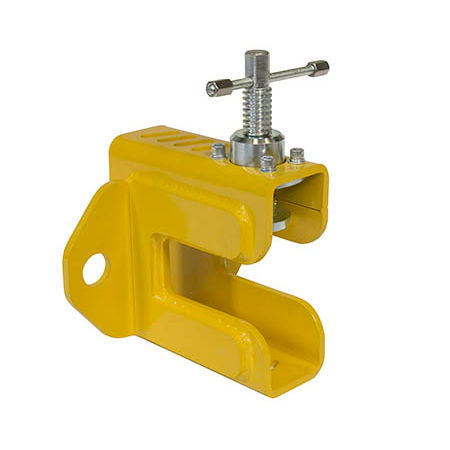

Mechanical clamping system TUG™ HD® series

for conveyor beltssafetymodular

TUG™ HD® Belt Clamps are designed to secure the belt for belt repair meeting the most stringent safety test standards. Available in 6 and 8 ton versions, TUG HD Belt Clamps provide even tensioning across the entire belt width for ultimate strength. Modular components allow for increased versatility and portability. • Design: Clamps over belt; extruded non-slip grip pattern • Belt type: Solid woven PVC/PVG or rubber-cover plied belting; flat, sidewall, chevron, etc. • Belt thickness: 2” to 2.25” (50 mm to 55mm) • Clamp screw torque: 200 Lb-Ft (270 N-m) • Belt width: up to 96” (2400 mm)
