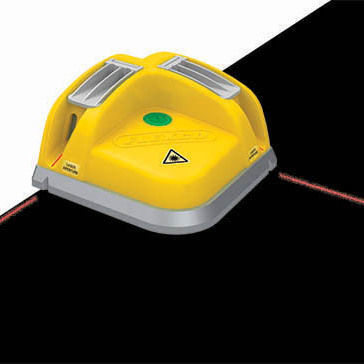

Belt alignment positioning laser 0430 series

alignmentvisiblered

Product overview
The Laser Belt Square speeds up and simplifies belt squaring for splicing by quickly locating the belt edge, aligning the laser and producing a precise marking line for cutting.

Specifications
Design: fully-sealed base unit with edge-locating pin; removable magnetic targets
Operation: four AA batteries
Battery life: approximately 60 continuous hours
Operating voltage: 3 V
Wavelength: 635 nm
Total output power (per laser): <5 mW
Operating temperature: 14 to 104 °F (-10 to 40 °C)
Weight: 2.3 lbs (1.04 kg)

Related products (series / replacement parts)

• Laser Belt Square — Ordering Number / Item Code: 04305
• Door Battery Box Assembly — Ordering Number / Item Code: 04307 (replacement part)
• Target (each) — Ordering Number / Item Code: 04306 (replacement part)

Features / technical specifications

• Design: fully-sealed base unit with edge-locating pin
• Removable magnetic targets for quick positioning
• Power / Operation: four AA batteries (operating voltage 3 V)
• Battery life: ~60 continuous hours
• Laser: wavelength 635 nm; total output power per laser <5 mW
• Environment: operating temperature -10 to 40 °C (14 to 104 °F)
• Weight: 1.04 kg (2.3 lbs)
• Ordering number / item code: 04305
• Replacement parts: Door Battery Box Assembly (04307); Target (04306)
