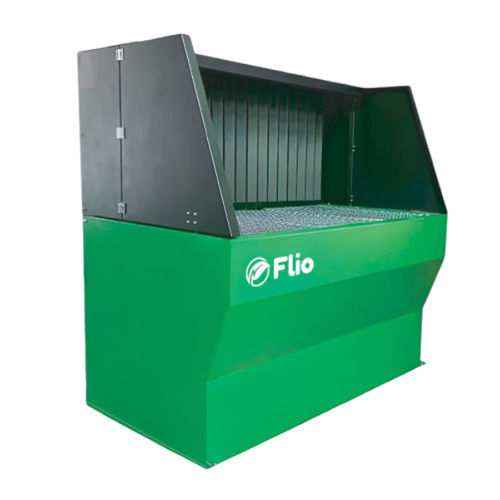

Suction grinding and welding table GRS series

with filter

Product description
Robust material structure ensures safe operation. The bottom suction system captures smoke and dust before they can be inhaled by the operator. The integrated dust collector simplifies removal of accumulated particles. The table's ergonomic design provides comfortable operation and it is mobile on wheels for easy repositioning. It can be connected to the workshop's central ventilation; an external filter or ventilation unit can also be attached. The product is available in standard and custom dimensions.

Application Areas

• Welding operations
• Grinding operations
• Sanding operations
• Assembly and fabrication work

Models
MODEL | FEATURE | MOTOR POWER | APPLICATION AREA | WEIGHT
GRS-F1 | WITH FILTER SYSTEM | 220V 50Hz | GRINDING AND WELDING | 400 kg
GRS-M1 | WITHOUT FILTER | 220V 50Hz | GRINDING AND WELDING | 140 kg

Dimensions (mm)
MODEL | A | B | C | D | E | F
GREEN STATION | 1200 | 800 | 585 | 380 | 800 | 1300

Technical specifications

• Commercial model: GreenStation
• Available models: GRS-F1 (with filtration system), GRS-M1 (without filter)
• Motor supply: 220V 50Hz
• Application area: grinding and welding; sanding and assembly operations
• Weight: GRS-F1: 400 kg; GRS-M1: 140 kg
• Ergonomic, mobile design (wheels)
• Connectable to central ventilation or external filter/ventilation unit
• Integrated dust collector for easy removal of particles
• Custom dimensions available
